MAIN FUSE REMOVAL/INSTALLATION

id092100801500

1.  Remove the battery. (See BATTERY REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

2.  Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

3.  Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD 2.2].)

4.  Disconnect the connector.

am6zzw00005364

5.  Remove the nuts.

am6zzw00005365

6.  Remove the bolts and nut.

am6zzw00005366

7.  Remove clips A and B from the main fuse block cover.

am6zzw00005374

Caution

•  Perform the work carefully so as not to damage the wiring harness.

8.  Pull the main fuse block outward.

9.  Cut the band.

am6zzw00006800

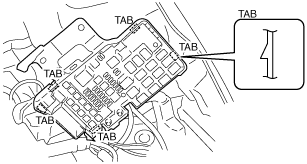

10.  Release the tabs and remove the main fuse block cover from the main fuse block.

am6zzw00005375

11.  Turn over the main fuse block without putting a load on the wiring harness, and remove the nuts.

am6zzw00005376

12.  Remove the main fuse from the main fuse block.

13.  Install in the reverse order of removal.
