PARKING SENSOR SWITCH REMOVAL/INSTALLATION

id092200775100

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (Driver side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (Driver side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Decoration panel (Driver side) (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(6)  Lower panel (Driver side) (See LOWER PANEL REMOVAL/INSTALLATION.)

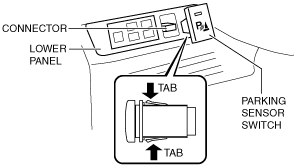

3.  Disconnect the connector.

am6zzw00006851

4.  Release the tabs and remove the parking sensor switch from the lower panel.

5.  Install in the reverse order of removal.
