DTC P0045:00 [PCM (SKYACTIV-D 2.2)]

id0102j5145700

Note

•  To determine the malfunctioning part, proceed with the diagnostics from [Function inspection using M-MDS].

Details on DTCs

System malfunction location	Regulating valve actuator control circuit problem
Detection condition	Determination conditions	•  The regulating valve actuator control duty value is 90% or more for a continuous 3 s.
	Preconditions	•  All of the following conditions are met. ―  During regulating valve actuator operation ―  The following DTCs are not detected •  Regulating valve actuator DC motor control system: P0046:00 •  Regulating valve actuator control system in PCM: P16A5:00 •  Regulating valve actuator position sensor: P2564:00, P2565:00
	Drive cycle	•  1
	Self-test type	•  CMDTC self test
	Sensor/unit used	•  Regulating valve actuator •  Regulating valve actuator position sensor
Fail-safe	•  Limits engine torque. •  Limits the maximum engine speed. •  Inhibits the automatic diesel particulate filter regeneration control. •  Inhibits the manual diesel particulate filter regeneration control. •  Inhibits the boost control. •  Inhibits the EGR control. •  Stops the G-vectoring control (GVC). •  Limits the engine transaxle total control.
Vehicle status when DTCs are output	•  Check engine light turns on
Possible Cause	•  Regulating valve actuator/regulating valve actuator position sensor connector or terminal malfunction •  PCM connector or terminal malfunction •  Short to power supply in wiring harness between regulating valve actuator/regulating valve actuator position sensor terminal E and PCM terminal 1CL •  Short to ground in wiring harness between regulating valve actuator/regulating valve actuator position sensor terminal A and PCM terminal 1CK •  Short to ground in wiring harness between regulating valve actuator/regulating valve actuator position sensor terminal E and PCM terminal 1CL •  Open circuit in wiring harness between the following terminals: ―  Regulating valve actuator/regulating valve actuator position sensor terminal A and PCM terminal 1CK ―  Regulating valve actuator/regulating valve actuator position sensor terminal E and PCM terminal 1CL •  Regulating valve actuator malfunction •  Regulating valve actuator position sensor malfunction •  PCM malfunction

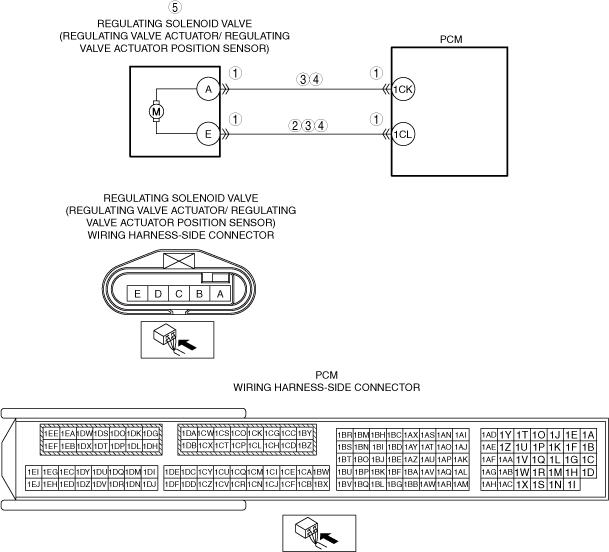

System Wiring Diagram

am6zzw00017803

Function Explanation (DTC Detection Outline)

―  The regulating valve actuator control duty value is 90% or more for a continuous 3 s.

Repeatability Verification Procedure

PID Item/Simulation Item Used in Diagnosis

PID

Function Inspection Using M-MDS

Step	Inspection	Results	Action
1	PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION Note •  Recording can be facilitated using the screen capture function of the PC. •  Record the freeze frame data/snap shot data.	—	Go to the next step.
2	PURPOSE: DETERMINE IF MALFUNCTION IS CAUSED BY REGULATING VALVE ACTUATOR POSITION SENSOR MALFUNCTION •  Inspect the regulating valve actuator position sensor. (See REGULATING VALVE ACTUATOR POSITION SENSOR INSPECTION [SKYACTIV-D 2.2]) •  Is the regulating valve actuator position sensor normal?	Yes	Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.
		No	Inspect the related wiring harnesses and connectors. •  Repair or replace the malfunctioning location. Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 6.

Troubleshooting Diagnostic Procedure

―  Verify that there is no problem with engagement of each separate part.

―  Verify that there is no malfunction in regulating valve actuator/regulating valve actuator position sensor terminal A and terminal E.

―  Perform inspection of each separate part.

―  Verify that primary malfunction is resolved and there are no other malfunctions.

Step	Inspection	Results	Action
1	PURPOSE: VERIFY IF CONNECTOR DAMAGE OF EACH PART AFFECTS DIAGNOSTIC RESULTS •  Switch the ignition OFF. •  Disconnect the connectors of the following parts: ―  Regulating valve actuator/regulating valve actuator position sensor ―  PCM •  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection. •  Are the connectors normal?	Yes	Go to the next step.
		No	Repair or replace the connector, then go to Step 7.
2	PURPOSE: VERIFY IF DIAGNOSTIC RESULT IS AFFECTED BY SHORT TO POWER SUPPLY IN REGULATING VALVE ACTUATOR/REGULATING VALVE ACTUATOR POSITION SENSOR CIRCUIT •  Verify that the regulating valve actuator/regulating valve actuator position sensor connector and the PCM connector are disconnected. •  Switch the ignition ON (engine off). Note •  Another DTC may be stored by the PCM detecting an open circuit. •  Measure the voltage at the following terminals (vehicle wiring harness side). ―  Regulating valve actuator/regulating valve actuator position sensor terminal E •  Is the voltage 0 V?	Yes	Go to the next step.
		No	Refer to the wiring diagram and verify if there is a common connector between the following terminals. •  Regulating valve actuator/regulating valve actuator position sensor terminal E and PCM terminal 1CL If there is a common connector: ―  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to power supply to determine the malfunctioning location. ―  Repair or replace the malfunctioning location. If there is no common connector: ―  Repair or replace the wiring harness which is shorted to the power supply. Go to Step 7.
3	PURPOSE: INSPECT REGULATING VALVE ACTUATOR/REGULATING VALVE ACTUATOR POSITION SENSOR CIRCUIT FOR SHORT TO GROUND •  Verify that the regulating valve actuator/regulating valve actuator position sensor connector and the PCM connector are disconnected. •  Inspect for continuity between the following terminals (vehicle wiring harness side) and ground. ―  Regulating valve actuator/regulating valve actuator position sensor terminal A ―  Regulating valve actuator/regulating valve actuator position sensor terminal E •  Is there continuity?	Yes	Refer to the wiring diagram and verify if there is a common connector between the following terminals. •  Regulating valve actuator/regulating valve actuator position sensor terminal A and PCM terminal 1CK •  Regulating valve actuator/regulating valve actuator position sensor terminal E and PCM terminal 1CL If there is a common connector: ―  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to ground to determine the malfunctioning location. ―  Repair or replace the malfunctioning location. If there is no common connector: ―  Repair or replace the wiring harness which is shorted to ground. Go to Step 7.
		No	Go to the next step.
4	PURPOSE: INSPECT REGULATING VALVE ACTUATOR/REGULATING VALVE ACTUATOR POSITION SENSOR CIRCUIT FOR OPEN CIRCUIT •  Verify that the regulating valve actuator/regulating valve actuator position sensor connector and the PCM connector are disconnected. •  Switch the ignition OFF. •  Inspect the wiring harness for continuity between the following terminals (vehicle wiring harness side). ―  Regulating valve actuator/regulating valve actuator position sensor terminal A and PCM terminal 1CK ―  Regulating valve actuator/regulating valve actuator position sensor terminal E and PCM terminal 1CL •  Is there continuity?	Yes	Go to the next step.
		No	Refer to the wiring diagram and verify if there is a common connector between the following terminals. •  Regulating valve actuator/regulating valve actuator position sensor terminal A and PCM terminal 1CK •  Regulating valve actuator/regulating valve actuator position sensor terminal E and PCM terminal 1CL If there is a common connector: ―  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for an open circuit to determine the malfunctioning location. ―  Repair or replace the malfunctioning location. If there is no common connector: ―  Repair or replace the wiring harness which has an open circuit. Go to Step 7.
5	PURPOSE: INSPECT REGULATING VALVE ACTUATOR •  Inspect the regulating valve actuator. (See REGULATING VALVE ACTUATOR INSPECTION [SKYACTIV-D 2.2]) •  Is the regulating valve actuator normal?	Yes	Go to the next step.
		No	Replace the regulating valve actuator, then go to the next step. (See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2])
6	PURPOSE: VERIFICATION OF VEHICLE REPAIR COMPLETION •  Reconnect all disconnected connectors and hoses. •  Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC. (See CLEARING DTC [PCM (SKYACTIV-D 2.2)]) •  Implement the repeatability verification procedure. (See Repeatability Verification Procedure) •  Display the DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)]) •  Is DTC P0045:00 displayed?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2])
		No	Go to the next step.
7	PURPOSE: VERIFY IF THERE IS ANY OTHER MALFUNCTION •  Has any other DTC or pending code been stored?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D 2.2)])
		No	DTC troubleshooting completed.
