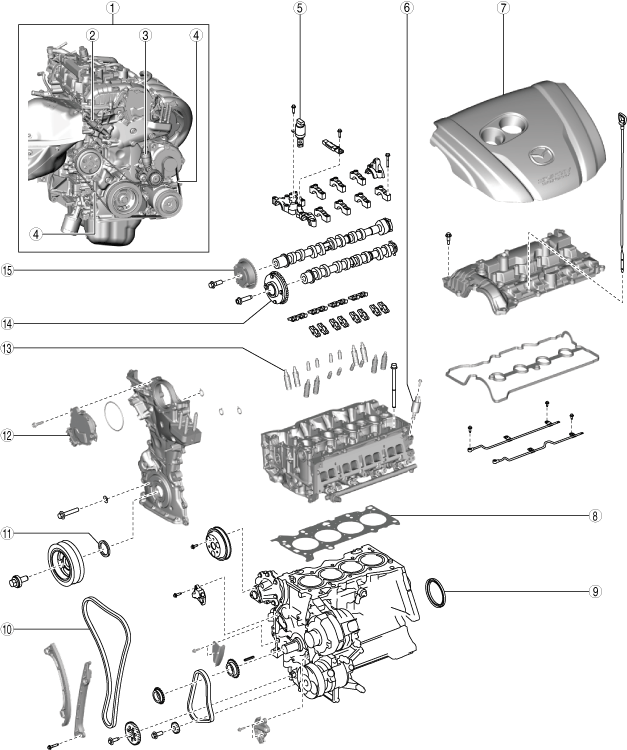

ENGINE LOCATION INDEX [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]


id0110s8800100

ac5wzw00010767

1
Engine
2
OCV for No.1 cylinder deactivation
3
Drive belt auto tensioner
4
Drive belt
5
OCV for hydraulic variable valve timing system
6
OCV for No.4 cylinder deactivation
7
Plug hole plate
8
Cylinder head gasket
9
Rear oil seal
10
Timing chain
11
Front oil seal
12
Electric variable valve timing motor/driver
13
HLA, Switchable HLA
14
Electric variable valve timing actuator
15
Hydraulic variable valve timing actuator
