COOLING SYSTEM LOCATION INDEX [SKYACTIV-D 2.2]

id0112s6800100

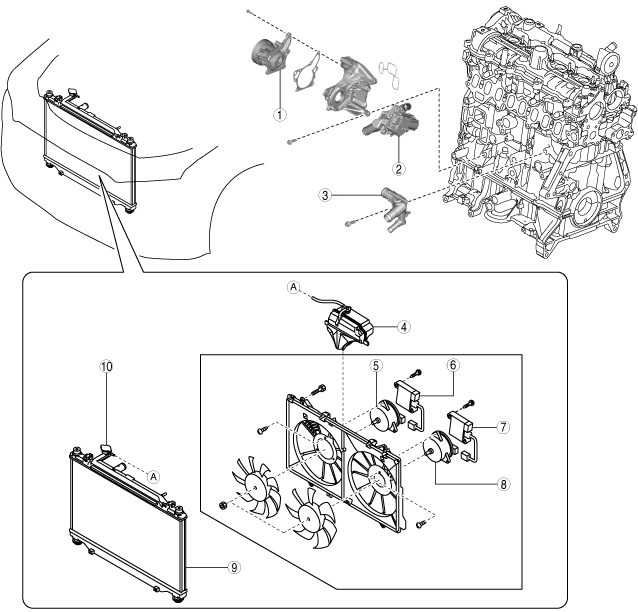

MTX

ac8jjw00000550

1
Water pump
(See WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
2
Coolant control valve
(See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-D 2.2].)
3
Thermo valve
(See THERMO VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(See THERMO VALVE INSPECTION [SKYACTIV-D 2.2].)
4
Coolant reserve tank
(See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-D 2.2].)
(See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
5
Cooling fan motor No.2
(See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(See COOLING FAN MOTOR INSPECTION [SKYACTIV-D 2.2].)
6
Fan control module No.2
(See FAN CONTROL MODULE INSPECTION [SKYACTIV-D 2.2].)
7
Fan control module No.1
(See FAN CONTROL MODULE INSPECTION [SKYACTIV-D 2.2].)
8
Cooling fan motor No.1
(See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(See COOLING FAN MOTOR INSPECTION [SKYACTIV-D 2.2].)
9
Radiator
(See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-D 2.2].)
(See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)
(See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)
(See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
10
Cooling system cap
(See COOLING SYSTEM CAP INSPECTION [SKYACTIV-D 2.2].)


ATX

am6zzw00017692

1
Water pump
(See WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
2
Coolant control valve
(See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-D 2.2].)
3
Thermo valve
(See THERMO VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(See THERMO VALVE INSPECTION [SKYACTIV-D 2.2].)
4
Coolant reserve tank
(See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-D 2.2].)
(See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
5
Cooling fan component
(See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(See COOLING FAN MOTOR INSPECTION [SKYACTIV-D 2.2].)
6
Radiator
(See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-D 2.2].)
(See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)
(See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)
(See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
7
Cooling system cap
(See COOLING SYSTEM CAP INSPECTION [SKYACTIV-D 2.2].)
