OIL SEAL (COUPLING COMPONENT) REPLACEMENT

id031400802000

1. Drain the differential oil into a container. (See DIFFERENTIAL OIL REPLACEMENT.)

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

4. Remove the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION.)

5. Remove the oil seal from the differential carrier using a screwdriver or similar tool.

6. Apply differential oil to the new oil seal lip.

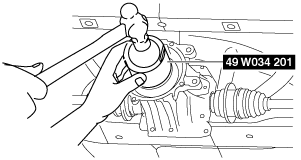

7. Install the new oil seal to the differential carrier using the SST.

ac5uuw00000306

8. Install the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION.)

9. Install the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

10. Add the specified differential oil from the filler plug. (See DIFFERENTIAL OIL REPLACEMENT.)
