COUPLING COMPONENT REMOVAL/INSTALLATION

id031800805300

Caution

•  If the characteristic value of a new coupling component is not input to the 4WD control module or the characteristic value is input incorrectly after replacing the coupling component, it could result in the following conditions:

―  The system does not operate normally.

―  A problem with durability of the coupling component occurs.

•  After replacing the coupling component, read out the characteristic value of a new coupling component and write it to the 4WD control module. (See COUPLING COMPONENT CALIBRATION DATA WRITING.)

•  Read out the characteristic value of the coupling component from the label or mark shown in the figure.

ac5uuw00003488

Note

•  The 4WD control module stores the characteristic value of the coupling component before replacement.

•  If the characteristic value of a new coupling component is not written, the 4WD control module does not store the value.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the rear differential oil into a container.

3.  Remove the following parts: (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

(1)  Floor under cover No.2

(2)  Floor under cover No.1

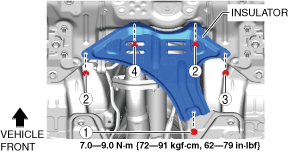

4.  Remove the fasteners and bolt in the order shown in the figure.

am6xuw00011666

5.  Remove the insulator.

6.  Remove the following parts: (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

(1)  Brace bar

(2)  Tunnel member

7.  Disconnect the SCR converter/middle pipe from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

8.  Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

9.  Remove in the order indicated in the table.

10.  Install in the reverse order of removal.

11.  Add rear differential oil. (See DIFFERENTIAL OIL REPLACEMENT.)

12.  If the coupling component is replaced, write the characteristic value of a new coupling component to the 4WD control module. (See COUPLING COMPONENT CALIBRATION DATA WRITING.)

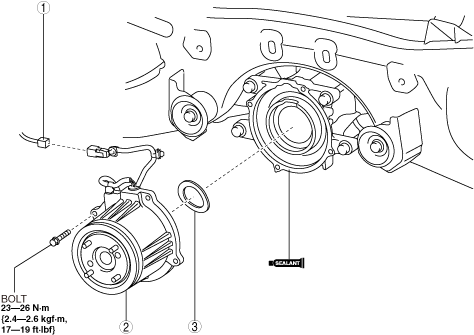

am6xuw00011667

1	4WD solenoid connector
2	Coupling component (See Coupling Component Removal Note.) (See Coupling Component Installation Note.)
3	Washer

Coupling Component Removal Note

1.  Support the coupling unit with a transmission jack.

2.  Cut away the coupling unit using an oil pan seal cutter.

ac5uuw00000880

Coupling Component Installation Note

Note

•  Clean away the remaining silicone sealant before applying new silicone sealant.

•  Install the coupling component before the applied silicone sealant starts to harden.

•  Add rear differential oil after the silicone sealant hardens.

1.  Apply a thin layer of silicone sealant (TB1217C or equivalent) to the contact surfaces of the coupling component and the rear differential.

2.  Install the coupling component to the differential.
