REAR VENT DUCT REMOVAL/INSTALLATION

id071100830100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(3)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].)

(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(5)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(6)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

3.  Remove the fastener.

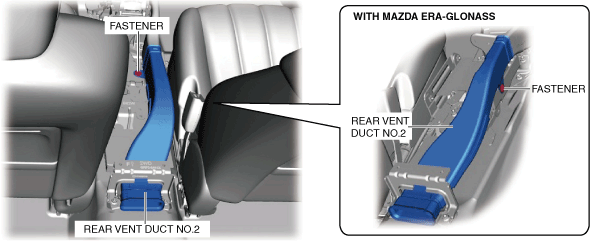

am6zzw00016080

4.  Remove rear vent duct No.2.

5.  Remove rear vent duct No.1.

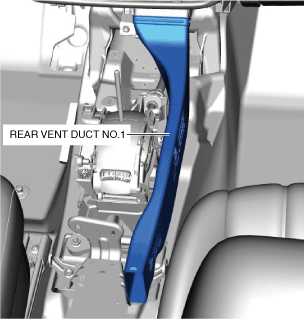

am6zzw00016081

6.  Install in the reverse order of removal.
