SHIFT PANEL REMOVAL/INSTALLATION

id091700898400

ATX

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

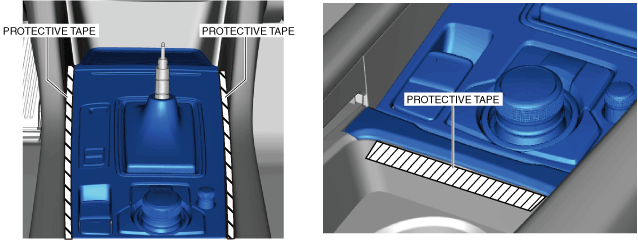

3. To prevent scratches or damage, apply protective tape to the position shown in the figure.

am6xuw00012720

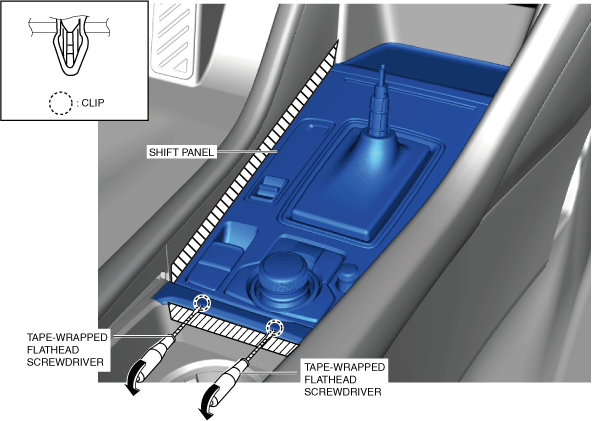

4. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrows, and remove the clips.

am6xuw00012721

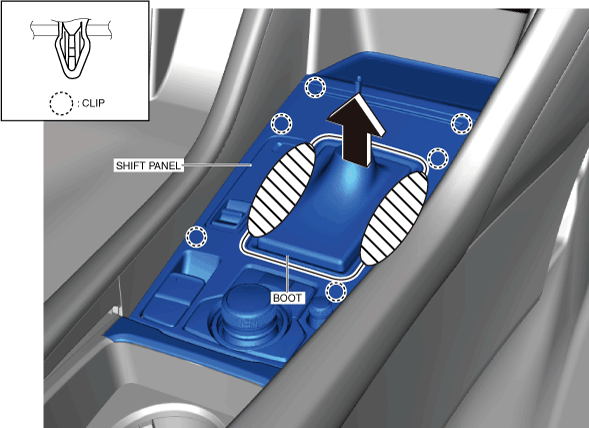

5. Hold the shaded areas of the boot shown in the figure, pull it in the direction of the arrow, and detach clips.

am6xuw00012722

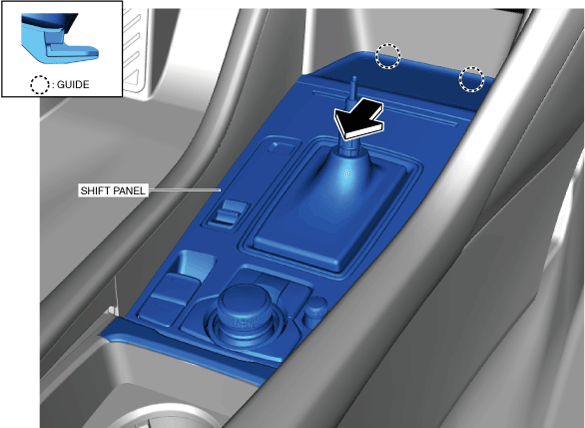

6. Remove the shift panel in the direction of the arrow shown in the figure. while detaching guides.

am6xuw00012723

7. Disconnect the commander switch connector. (with commander switch)

8. Disconnect the electric parking brake switch connector.

9. Disconnect the indicator connector.

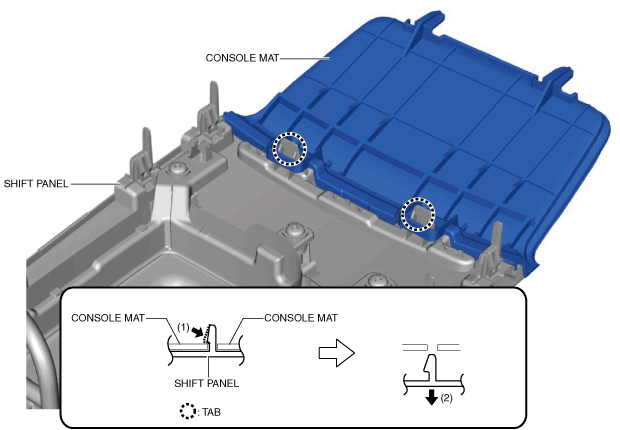

10. While pressing the tab in the directions of arrows (1) shown in the figure, press it up in the direction of arrow (2) and detach the tabs from the shift panel.

am6xuw00011859

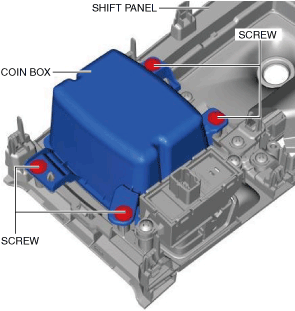

• When removing the coin box, perform the following procedure: (with coin box)

11. Remove the screws.

am6zzw00016835

12. Removing the coin box.

13. Install in the reverse order of removal.

Note

• When replacing the shift panel, remove the following parts:

1. Electric parking brake switch (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

2. Commander switch (with commander switch) (See COMMANDER SWITCH REMOVAL/INSTALLATION.)

3. Drive selection switch (See DRIVE SELECTION SWITCH REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See DRIVE SELECTION SWITCH REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See DRIVE SELECTION SWITCH REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)

MTX

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the shift lever knob. (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

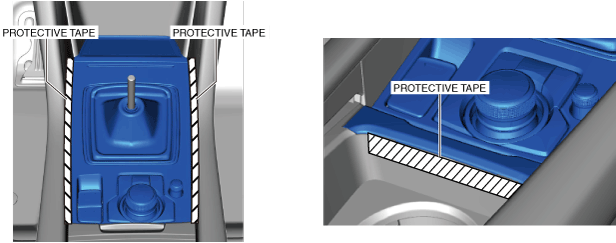

3. To prevent scratches or damage, apply protective tape to the position shown in the figure.

am6xuw00012724

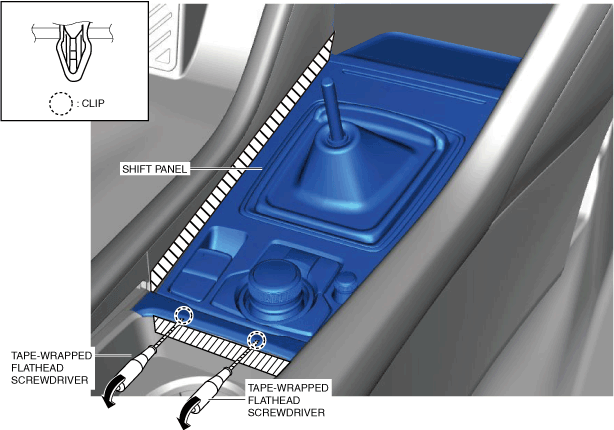

4. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrows, and remove the clips.

am6xuw00012725

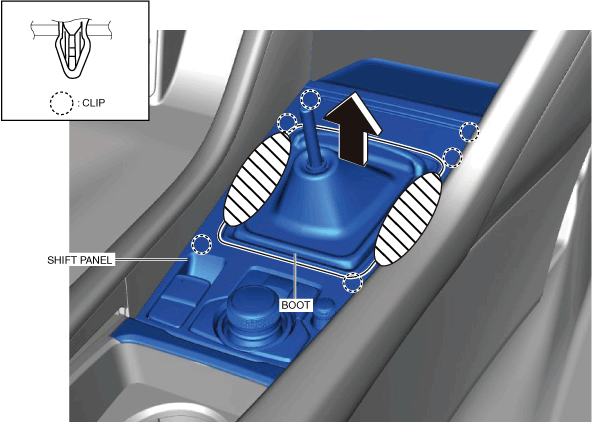

5. Hold the shaded areas of the boot shown in the figure, pull it in the direction of the arrow, and detach clips.

am6xuw00012726

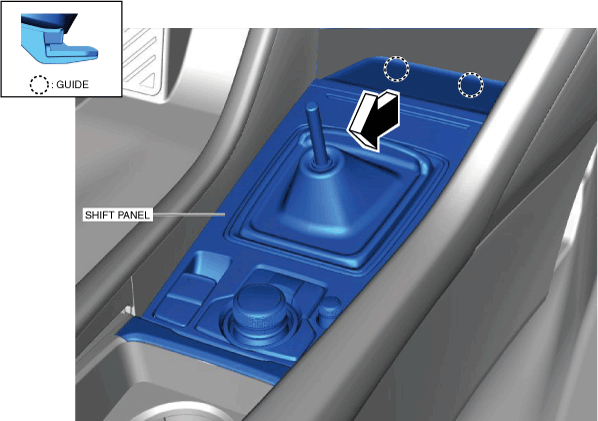

6. Remove the shift panel in the direction of the arrow shown in the figure. while detaching guides.

am6xuw00012727

7. Disconnect the commander switch connector. (with commander switch)

8. Disconnect the electric parking brake switch connector.

9. While pressing the tab in the directions of arrows (1) shown in the figure, press it up in the direction of arrow (2) and detach the tabs from the shift panel.

am6xuw00011866

• When removing the coin box, perform the following procedure: (with coin box)

10. Remove the screws.

am6zzw00016835

11. Removing the coin box.

12. Install in the reverse order of removal.

Note

• When replacing the shift panel, remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

• When replacing the shift panel, remove the commander switch. (with commander switch) (See COMMANDER SWITCH REMOVAL/INSTALLATION.)
