ENERGY-ABSORBING FOAM REMOVAL/INSTALLATION

id091000889100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

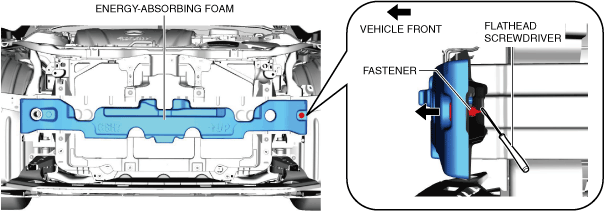

4.  Insert the flathead screwdriver shown in the figure, push the fastener in the direction of the arrow for back side of front bumper reinforcement.

am6zzw00015779

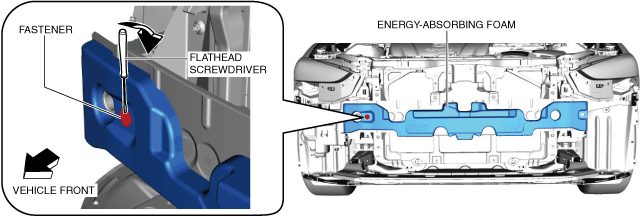

5.  Insert a flathead screwdriver in the position shown in the figure, move it in the direction of the arrow, and remove the fastener.

am6zzw00015780

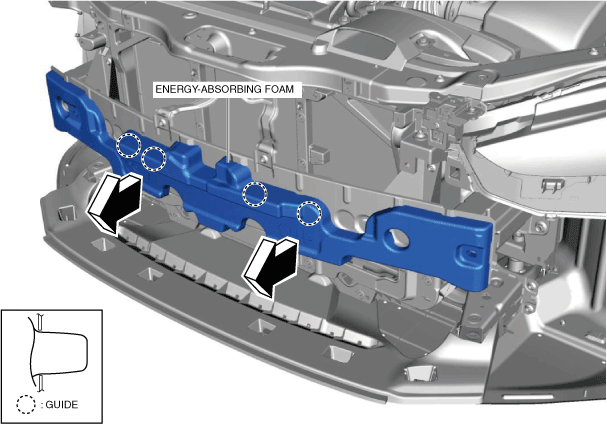

6.  Pull the energy-absorbing foam in the direction of the arrows shown in the figure while detaching the guides.

am6zzw00015781

7.  Install in the reverse order of removal.
