INTAKE AIR GUIDE REMOVAL/INSTALLATION

id091000988800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

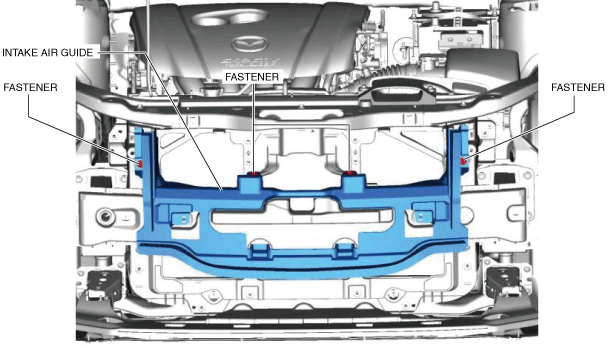

4.  Remove the fasteners.

am6zzw00015784

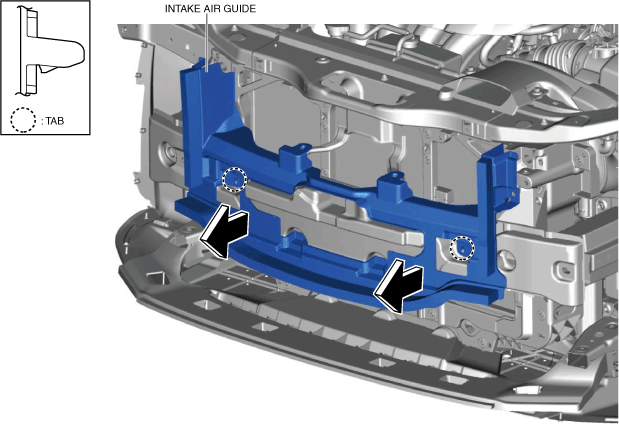

5.  Remove the intake air guide in the direction of the arrows shown in the figure while detaching the tabs.

am6zzw00015785

6.  Install in the reverse order of removal.
