REAR SUNSHADE REMOVAL/INSTALLATION

id091200202000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Lower the rear seat back.

3.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(3)  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

(4)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(5)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Rear package trim No.1 (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

(7)  High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)

(8)  Rear package trim No.2 (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

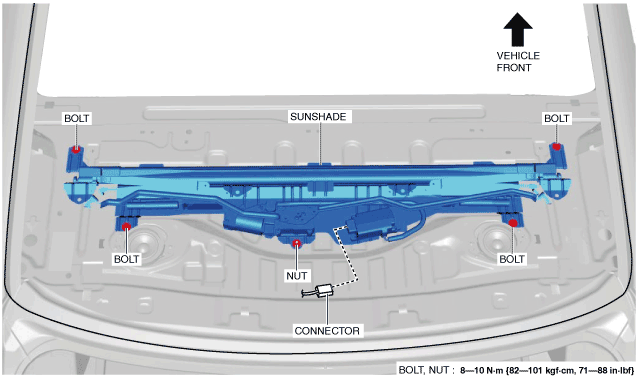

4.  Disconnect the connector.

am6xuw00007604

5.  Remove bolts.

6.  Remove nut.

7.  Remove the rear sunshade.

8.  Install in the reverse order of removal.
