REAR CENTER SEAT BELT REMOVAL/INSTALLATION

id081100800900

4SD

Caution

• If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.

1. Switch the ignition off.

2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Remove the following parts:

(1) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3) Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

(4) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(5) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(6) High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)

(7) Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

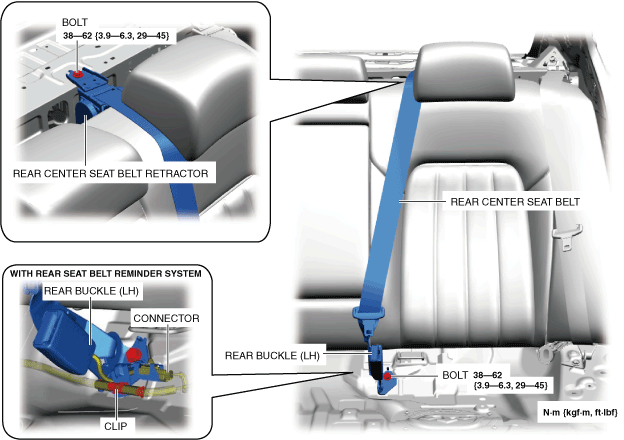

4. Detach the clip. (with rear seat belt reminder system)

am6zzw00016235

5. Disconnect the connector. (with rear seat belt reminder system)

6. Remove the bolts.

7. Remove the rear center seat belt retractor.

8. Remove the rear center seat belt with the rear buckle (LH).

9. Install in the reverse order of removal. (See 4SD.)

Rear center seat belt installation note

1. After installing the rear center seat belt, place it as shown in the figure.

am6zzw00016236

WGN

Caution

• If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.

Note

• The rear center seat belt is building into the rear seat back.

1. Switch the ignition off.

2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Remove the following parts:

(1) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2) Rear buckle (LH) (See REAR BUCKLE REMOVAL/INSTALLATION.)

(3) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)

(4) Rear seat back trim (See REAR SEAT BACK TRIM REMOVAL/INSTALLATION.)

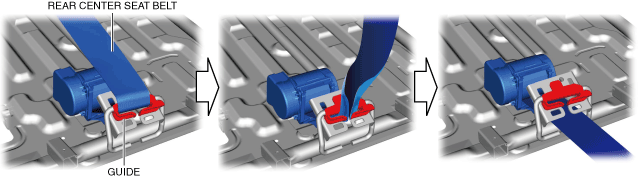

4. Remove the rear center seat belt from the guide as shown in the figure.

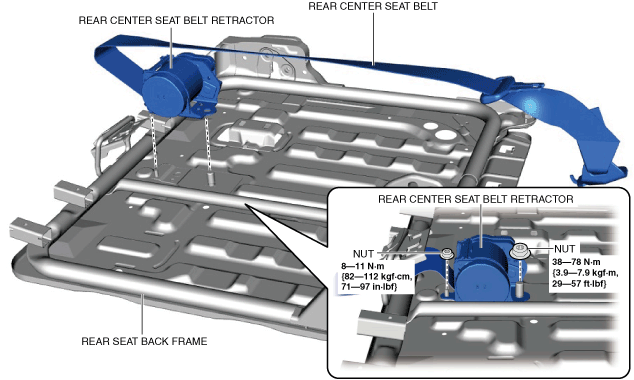

am6zzw00016237
