FRONT SASH MOLDING REMOVAL

id091600805000

1.  Remove the following parts:

(1)  Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)

(2)  Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)

(3)  Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION.)

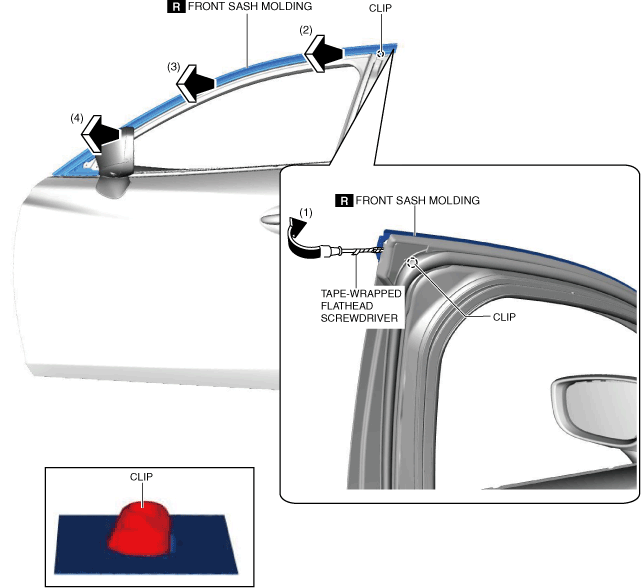

2.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of arrow (1) to detach the clip.

am6xuw00012584

3.  Remove the front sash molding in the direction of the arrow in the order of (2), (3), (4).
