FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700804200

Driver-side

1.  Disassemble in the order shown in the figure.

am6xuw00011842

1	Fastener
2	Short cord
3	Front door trim

2.  Assemble in the reverse order of disassembly.

Note

•  When replacing the front door trim, remove the following parts:

1.  Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

2.  Power window main switch cover (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

3.  Courtesy light (See COURTESY LIGHT REMOVAL/INSTALLATION.)

4.  Pocket light (with pocket light) (See POCKET LIGHT REMOVAL/INSTALLATION.)

Passenger-side

1.  Disassemble in the order shown in the figure.

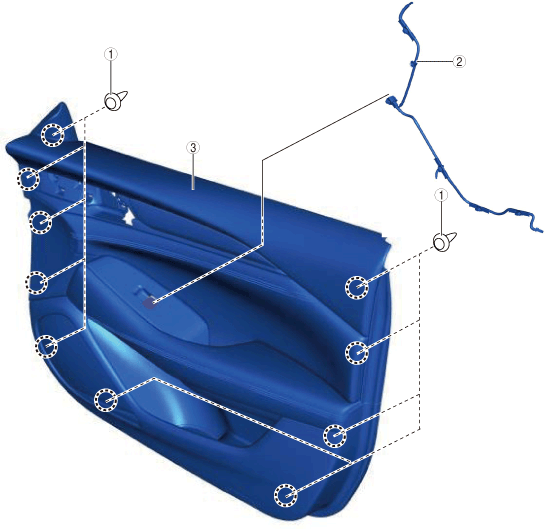

am6zzw00016825

1	Fastener
2	Short cord
3	Front door trim

2.  Assemble in the reverse order of disassembly.

Note

•  When replacing the front door trim, remove the following parts:

1.  Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

2.  Power window subswitch cover (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

3.  Courtesy light (See COURTESY LIGHT REMOVAL/INSTALLATION.)

4.  Pocket light (with pocket light) (See POCKET LIGHT REMOVAL/INSTALLATION.)
