REAR DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700804300

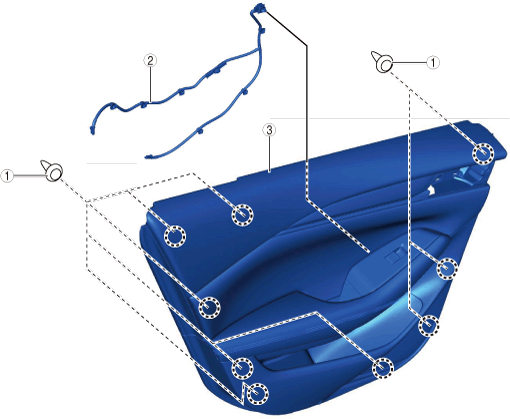

1.  Disassemble in the order shown in the figure.

am6xuw00012718

1	Fastener
2	Short cord
3	Rear door trim

2.  Assemble in the reverse order of disassembly.

Note

•  When replacing the dashboard, remove the following parts:

1.  Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

2.  Power window subswitch cover (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

3.  Courtesy light (See COURTESY LIGHT REMOVAL/INSTALLATION.)

4.  Pocket light (with pocket light) (See POCKET LIGHT REMOVAL/INSTALLATION.)
