SIDE TURN LIGHT INSPECTION

id091800811600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

3.  Remove the upper outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

4.  Remove the lower outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

5.  Remove the side turn light. (See SIDE TURN LIGHT REMOVAL/INSTALLATION.)

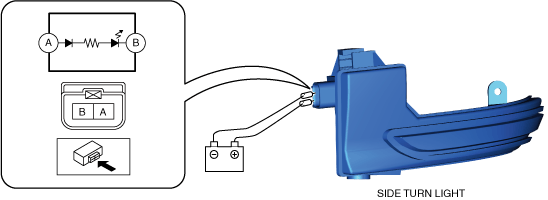

6.  Apply battery voltage to side turn light terminal A, and connect terminal B to ground.

am6zzw00017455

7.  Verify that the LED illuminates.

•  If the LED illuminates, go to the next step.

•  If the LED does not illuminate, replace the side turn light. (See SIDE TURN LIGHT REMOVAL/INSTALLATION.)

8.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Power outer mirror connector (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

9.  Verify that the continuity between side turn light terminal and power outer mirror terminal is as indicated in the table.

am6zzw00017456

am6zzw00008097

•  If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)
