LDWS SWITCH INSPECTION

id152000002700

Note

•  The LDWS switch is integrated with the cluster switch.

Switch inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

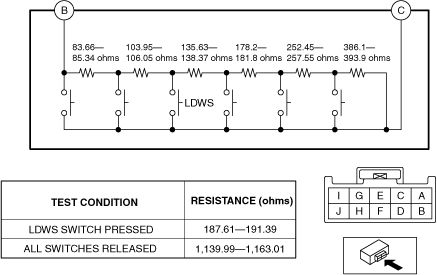

3.  Verify that the resistance between LDWS switches B and C is as indicated in the table.

am6zzw00014996

•  If the resistance cannot be verified as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

LED illumination inspection

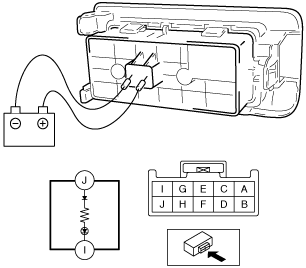

1.  Apply battery positive voltage to LDWS switch terminal J, and connect terminal I to ground.

ac5jjw00000654

1.  Verify that the LED illuminates.

•  If there is any malfunction, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
