SMART CITY BRAKE SUPPORT (SCBS) OFF SWITCH INSPECTION

id152000015600

Note
•  The Smart City Brake Support (SCBS) OFF switch is integrated with the cluster switch.
•  For the Smart City Brake Support (SCBS) OFF switch removal/installation, refer to CLUSTER SWITCH REMOVAL/INSTALLATION. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

Resistance Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

3.  Verify that the resistance between the Smart City Brake Support (SCBS) OFF switch terminals B and C is as indicated in the table.

•  If not as indicated in the table, replace the cluster switch.

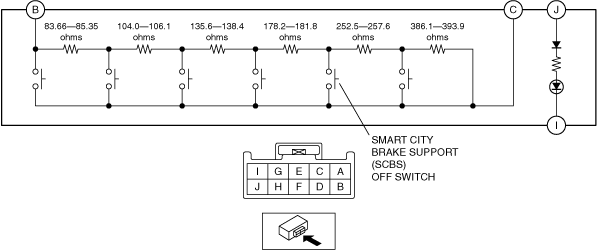

am3zzw00019220

SCBS OFF switch specification

Terminal

Test condition

Resistance (ohms)
B—C
SCBS OFF switch pressed
501.46—511.65
All switches released
1140.06—1163.15


LED Illumination Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage to Smart City Brake Support (SCBS) OFF switch terminal J, and connect terminal I to ground.

am3zzw00013945

4.  Verify that the LED illuminates.

•  If there is any malfunction, replace the cluster switch.
