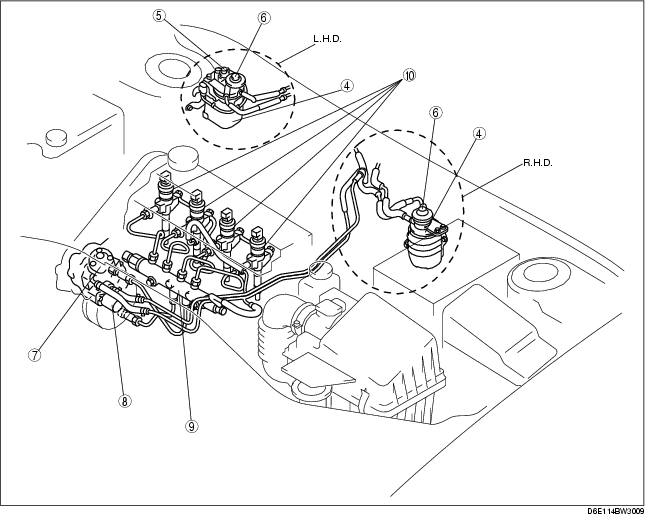

Engine room side

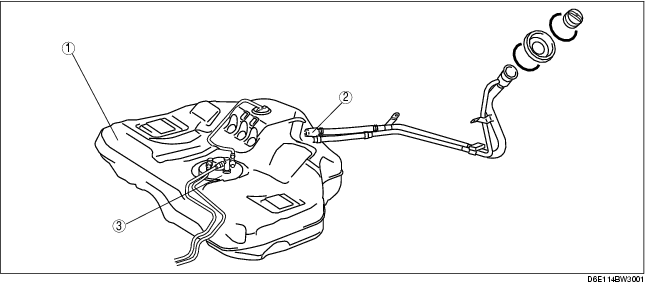

Fuel tank side
.
|
1
|
Fuel tank
|
|
2
|
Nonreturn valve
|
|
3
|
Fuel gauge sender unit
|
|
4
|
Fuel filter
|
|
5
|
Fuel warmer (Cold District Specification)
|
|
6
|
Priming pump
|
|
7
|
Supply pump
|
|
8
|
Suction control valve
|
|
9
|
Common rail
|
|
10
|
Fuel injector
|
