1. Turn the ignition switch to the ON position.
2. Verify that the cruise control main switch is off.

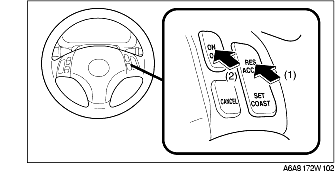

3. Press and hold the RESUME/ACCEL switch on (1), and turn on the cruise control main switch (2). Keep the RESUME/ACCEL switch on for 3 seconds or more after the cruise control main switch released. (The cruise set indicator light will illuminate for 3 seconds, showing that the system inspection has started.)
4. Operate each switch as described in the operation code list and note the operation code list pattern.
5. The operation mode is canceled by turning the ignition switch to LOCK position or turning off the cruise control main switch.
|
Operation
|
DTC
|
Output pattern
|
Diagnosed circuit
|
Page
|
|---|---|---|---|---|
|
Turn SET/COAST switch on
|
21
|
|
Cruise control switch
(SET/COAST switch)
|
(See DTC 21)
|
|
Turn RESUME/ACCEL switch on
|
22
|
|
Cruise control switch
(RESUME/ACCEL switch)
|
(See DTC 22)
|
|
Depress brake pedal
|
31
|
|
Brake switch
|
(See DTC 31)
|
|
MTX:
Depress clutch pedal
ATX:
Shift selector lever to P or N position
|
35
|
|
MTX:
Clutch switch
ATX:
TR switch
|
(See DTC 35)
|
|
Drive vehicle above 40 km/h {25 mph}
|
37
|
|
Vehicle speed sensor
|
(See DTC 37)
|
