ACCELERATOR PEDAL REMOVAL/INSTALLATION [LF, L3]


id0113008014b3

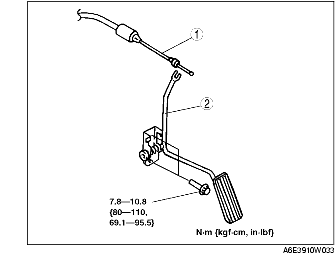

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

1
Accelerator cable
2
Accelerator pedal

Accelerator Cable Installation Note

1. Carry out the "ACCELERATOR CABLE INSPECTION/ADJUSTMENT" procedure after installing the accelerator cable. (See ACCELERATOR CABLE INSPECTION/ADJUSTMENT [LF, L3].)
