STARTER REMOVAL/INSTALLATION [LF, L3]

id0119008002b2

Warning
• When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery negative cables before performing the following operation.

1. Disconnect the negative battery cable.

2. Remove the under cover.

3. Remove the air cleaner assembly.

(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L3].)

4. Remove the clutch release cylinder. (MTX)

(See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION.)

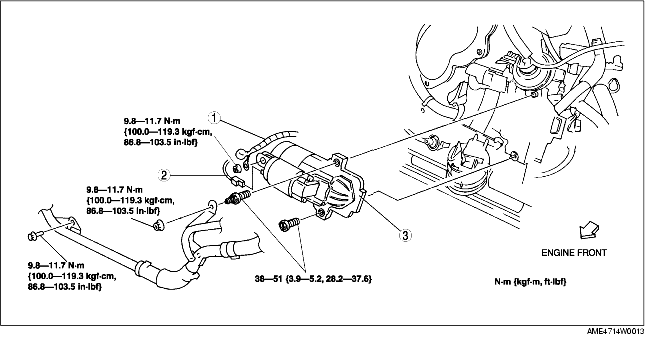

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

1
Terminal B wire
2
Terminal S wire
3
Starter

Starter Installation Note

Note

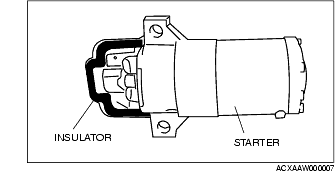

• If there is peeling on or damage to the insulator, attach a new insulator using the following procedure:

1. Peel off the insulator from the starter completely using a scraper.

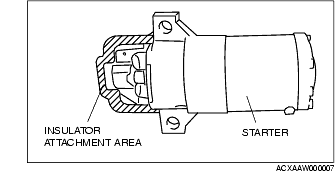

2. Degrease the insulator attachment area.

3. Attach a new insulator to the starter.
