NEUTRAL SWITCH INSPECTION [LF, L3]
id0140008008a6
-
Note
-
• Perform the following inspection only when directed.
Continuity Inspection
1. Disconnect the negative battery cable.
2. Remove the neutral switch.MANUAL TRANSAXLE REMOVAL/INSTALLATION [G35M-R].)

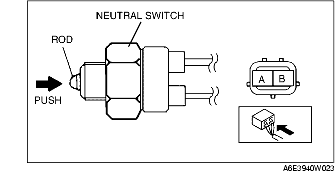

3. Inspect for continuity between the neutral switch terminals using an ohmmeter.
-
• If the neutral switch is okay, but CPP/PNP PID value is out of specification, carry out of the "Circuit Open/Short Inspection".
-
• If not as specified, replace the neutral switch.
Specification
|
Condition
|
Continuity (terminal B-D)
|
|
Rod pushed
|
Continuity detected
|
|
Except above
|
No continuity
|
Circuit Open/Short Inspection
1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [LF, L3].)
2. Inspect the following harness for an open or short circuit. (Continuity check)
Open circuit
-
• Neutral switch terminal B (harness-side) and PCM terminal 1W (harness-side)
-
• Neutral switch terminal A (harness-side) and body GND
Short circuit
-
• Neutral switch terminal B (harness-side) and body GND
