1. Remove the center console. (See CONSOLE REMOVAL/INSTALLATION.)
2. Remove the rear seat cushion (4SD) or rear seat 5HB, Wagon). (See REAR SEAT REMOVAL/INSTALLATION.)
3. Remove the exhaust pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [LF, L3].)
4. Remove the exhaust pipe bracket.

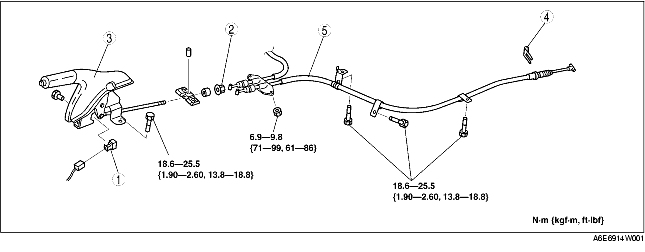

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Adjust the parking brake stroke. (See PARKING BRAKE (LEVER TYPE) ADJUSTMENT.)
