ABS (ABS/TCS) HU/CM REMOVAL/INSTALLATION

id041300802500

Caution

• When replacing the ABS (ABS/TCS) HU/CM, configuration procedure must be done before removing the ABS (ABS/TCS) HU/CM. If configuration is not completed before removing the ABS (ABS/TCS) HU/CM, TCS will not work properly after installation of the ABS/TCS HU/CM.

• Do not drop the ABS (ABS/TCS) HU/CM. Replace it if it is subjected to an impact.

1. Configurate the ABS (ABS/TCS) HU/CM (when only replacing it). (See ABS (ABS/TCS) HU/CM CONFIGURATION.)

2. Remove the battery, battery tray and battery tray bracket. (See BATTERY REMOVAL/INSTALLATION [LF, L3].)

3. Remove the under cover.

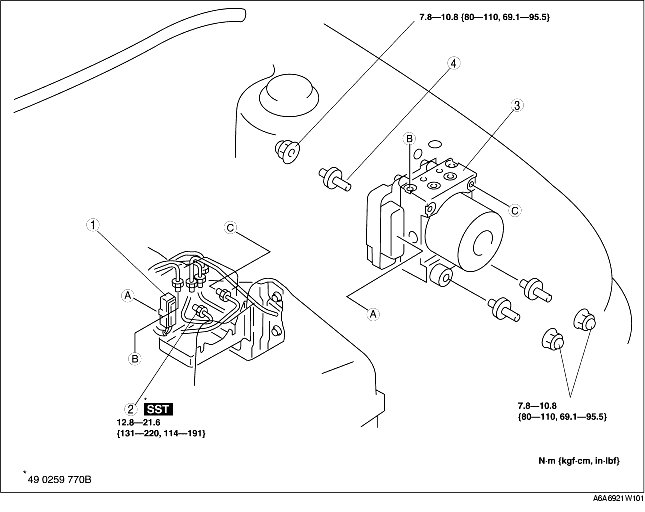

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.


1	Connector (See Connector Removal Note) (See Connector Installation Note)
2	Brake pipe (See Brake Pipe Removal Note) (See Brake Pipe Installation Note)
3	ABS (ABS/TCS) HU/CM (See ABS (ABS/TCS) HU/CM Removal/Installation Note)
4	Stud

Connector Removal Note

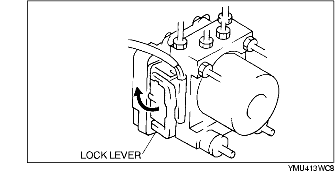

1. Pull the lock lever up and make it unlock.

2. Remove the connector.

Brake Pipe Removal Note

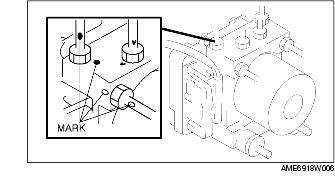

1. Mark the brake pipe connecting positions before removal for reference during installation.

ABS (ABS/TCS) HU/CM Removal/Installation Note

1. When removing/installing the ABS (ABS/TCS) HU/CM from/to the vehicle, attach a strip of protective tape on the ABS (ABS/TCS) HU/CM connector to prevent brake fluid from entering.

Brake Pipe Installation Note

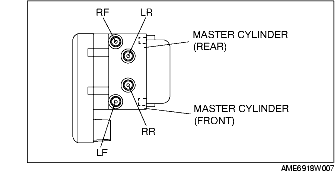

1. When installing the brake pipe, align the marks made before removal with the ABS (ABS/TCS) HU/CM as shown in the figure.

Connector Installation Note

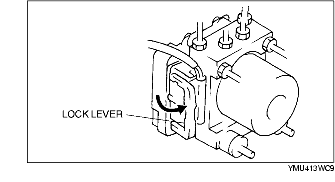

1. Verify that the lock lever of the harness connector is completely pulled up.
