1. Connect the connector to the panel light control switch.
2. Connect the negative battery cable.
3. Measure the voltage at the panel light control switch using a voltmeter.
4. If the value are not as specified in the Terminal Voltage List (Reference), inspect the parts under "Action" and related wiring harnesses.
5. If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the panel light control switch.
|

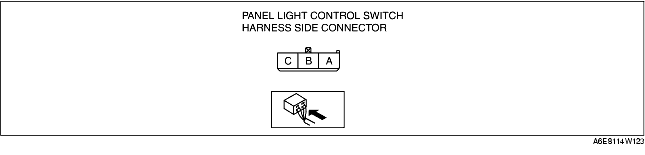

Terminal
|
Signal
|
Connected to
|
Test condition
|
Voltage (V)/Continuity
|
Action
|
|
|---|---|---|---|---|---|---|
|
A
|
TNS
|
TNS relay
|
Headlight switch at TNS or headlight position
|
B+
|
• Inspect TNS relay (See RELAY INSPECTION.)
• Inspect ILLUMI 10A fuse
• Inspect related harness
|
|
|
Other
|
0
|
|||||
|
B
|
Ground
|
GND
|
Under any condition: inspect for continuity to ground
|
Yes
|
• Inspect GND
• Inspect related harness
|
|
|
C
|
Illumination
|
Each illumination
|
Inspect using an oscilloscope (See Terminal C inspection.)
|
-
|
• Inspect each illumination
• Inspect related harness
|
|

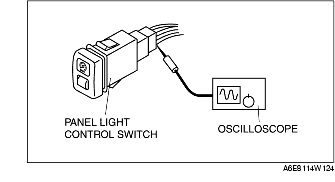

1. Measure the wave pattern of the terminal C on the panel light control switch using an oscilloscope.
2. Set the headlight switch to either the TNS or headlight position.
3. Set the panel light control switch to the brightest position.

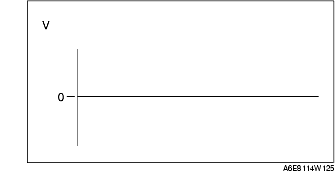

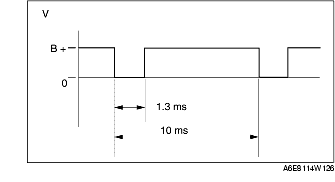

4. Verify that the pattern on the screen is as shown in the figure.
5. Verify that the pattern on the screen matches the pattern shown in the figure as the panel light control switch is gradually turned to the darkest position.
