1. Disconnect the negative battery cable.
2. Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION)
3. Partially peel off the right side mud guard.

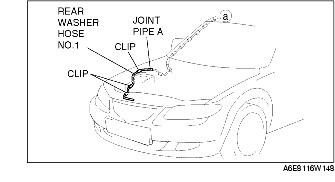

4. Remove rear washer hose No.1 from the clips.
5. Remove rear washer hose No.1 and joint pipe A.
6. Remove the A-pillar trim. (See A-PILLAR TRIM REMOVAL)

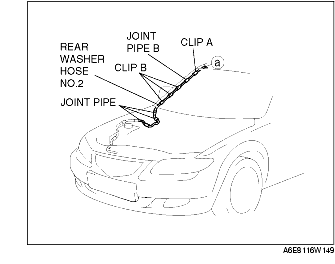

7. Remove rear washer hose No.2 from clip A.
8. Remove clips B from the body.
9. Remove rear washer hose No.2 and joint pipes B.
10. Remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION) (5HB)
11. Remove the D-pillar trim. (WGN)
12. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION)

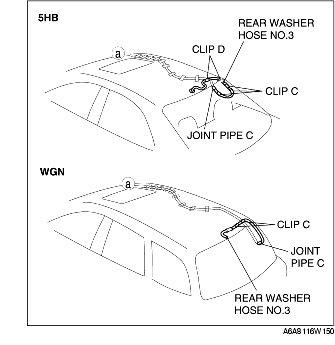

13. Remove rear washer hose No.3 from clip C.
14. Remove clips D from the body. (5HB)
15. Remove rear washer hose No.3 and joint pipe C.
16. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION)
17. Remove the tape from rear washer hose No.4.
18. Install in the reverse order of removal.
