CONVENTIONAL BRAKE SYSTEM LOCATION INDEX

id041100800100

Vehicle Front Side

am6zzw00008752

1	Vacuum line (See VACUUM LINE INSPECTION.) (See VACUUM HOSE REMOVAL/INSTALLATION.)
2	Brake fluid (See BRAKE FLUID INSPECTION.) (See BRAKE FLUID AIR BLEEDING.)
3	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.].) (See MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.].) (See BRAKE FLUID LEVEL SENSOR INSPECTION.)
4	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].)
5	Power brake unit vacuum sensor (vehicles with i-stop) (See POWER BRAKE UNIT VACUUM SENSOR REMOVAL/INSTALLATION.)
6	Brake switch (See BRAKE SWITCH INSPECTION.)
7	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].) (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)
8	Front brake (disc) (See FRONT BRAKE (DISC) INSPECTION.) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (FRONT) REPLACEMENT.) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY.)
9	Front brake hose (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION.)
10	Vacuum pump (See VACUUM PUMP INSPECTION.) (See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

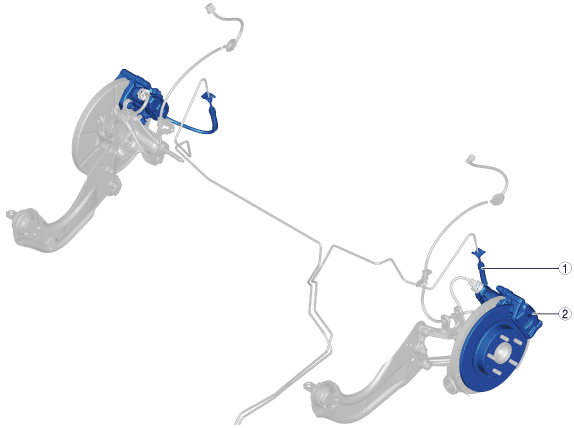

Vehicle Rear Side

am6zzw00014070

1	Rear brake hose (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION.)
2	Rear brake (disc) (See REAR BRAKE (DISC) INSPECTION.) (See REAR BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (REAR) REPLACEMENT.) (See CALIPER (REAR) DISASSEMBLY/ASSEMBLY.)
