REAR SEAT BACK TRIM REMOVAL/INSTALLATION

id091300989400

Removal

Sedan

1.  Remove the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)

2.  Remove the rear seat center armrest. (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.)

3.  Remove the rear seat back frame. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)

4.  Remove C-rings in the order of (1), (2), (3), (4), (5), and (6) shown in the figure, and remove the rear seat back trim from the rear seat back pad.

am6zzw00012506

Caution

•  If a C-ring is damaged while removing or installing the rear seat back trim and rear seat back pad, it may not be possible to install the rear seat back trim and rear seat back pad normally. When removing or installing the rear seat back trim and rear seat back pad, be careful not to damage the C-rings.

•  If a C-ring is damaged, replace it with a new one.

Wagon

1.  Remove the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)

2.  Remove the rear seat center armrest. (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.)

3.  Remove the rear seat back frame. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)

4.  Remove C-rings in the order of (1), (2), (3), (4), (5), and (6) shown in the figure, and remove the rear seat back trim from the rear seat back pad.

am6zzw00012468

Caution

•  If a C-ring is damaged while removing or installing the rear seat back trim and rear seat back pad, it may not be possible to install the rear seat back trim and rear seat back pad normally. When removing or installing the rear seat back trim and rear seat back pad, be careful not to damage the C-rings.

•  If a C-ring is damaged, replace it with a new one.

Installation

Sedan

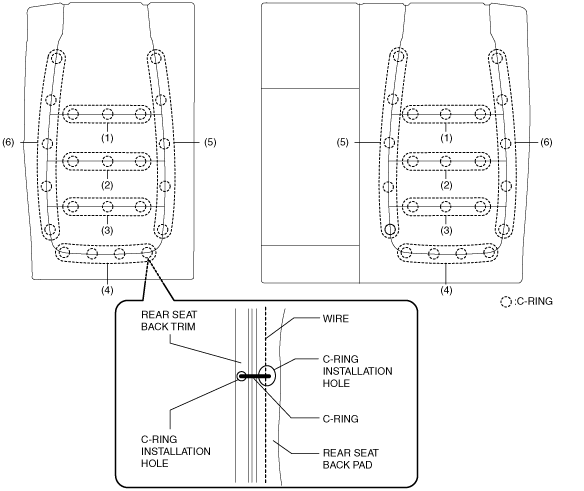

1.  Align the rear seat back trim with the installation hole of the rear seat back pad, and install the C-rings in the order of (1), (2), (3), (4), (5), and (6) shown in the figure.

am6zzw00012530

Caution

•  If a C-ring is damaged while removing or installing the rear seat back trim and rear seat back pad, it may not be possible to install the rear seat back trim and rear seat back pad normally. When removing or installing the rear seat back trim and rear seat back pad, be careful not to damage the C-rings.

•  If a C-ring is damaged, replace it with a new one.

Note

•  Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.

ac5wzw00007057

2.  Press the rear seat back pad inward while pulling the rear seat back trim outward.

ac5wzw00007058

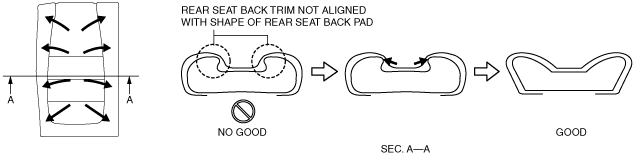

3.  Align the rear seat back trim with the shape of the rear seat back pad while pressing the rear seat back pad outward.

ac5wzw00007059

4.  Install the rear seat back frame. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)

5.  Install the rear seat center armrest. (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.)

6.  Install the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)

Wagon

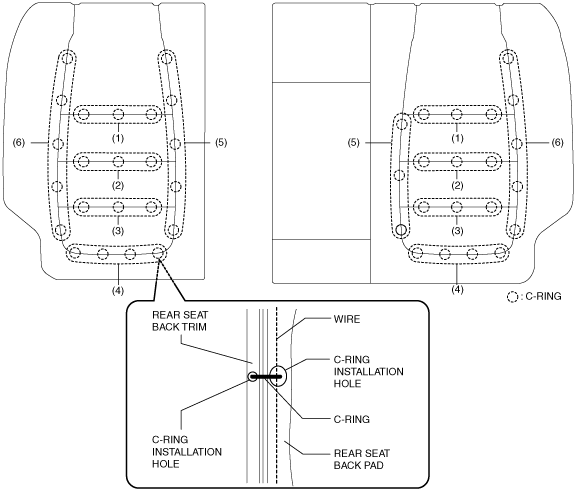

1.  Align the rear seat back trim with the installation hole of the rear seat back pad, and install the C-rings in the order of (1), (2), (3), (4), (5), and (6) shown in the figure.

am6zzw00012531

Caution

•  If a C-ring is damaged while removing or installing the rear seat back trim and rear seat back pad, it may not be possible to install the rear seat back trim and rear seat back pad normally. When removing or installing the rear seat back trim and rear seat back pad, be careful not to damage the C-rings.

•  If a C-ring is damaged, replace it with a new one.

Note

•  Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.

ac5wzw00007057

2.  Press the rear seat back pad inward while pulling the rear seat back trim outward.

ac5wzw00007058

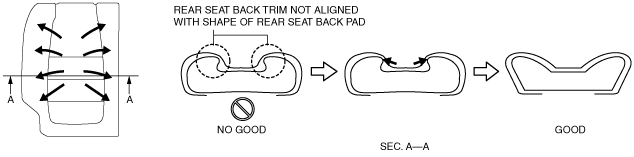

3.  Align the rear seat back trim with the shape of the rear seat back pad while pressing the rear seat back pad outward.

ac5wzw00007061

4.  Install the rear seat back frame. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)

5.  Install the rear seat center armrest. (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.)

6.  Install the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)
