FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION

id091400510800


L.H.D.


4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(6)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)
(7)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(8)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(9)  Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(10)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

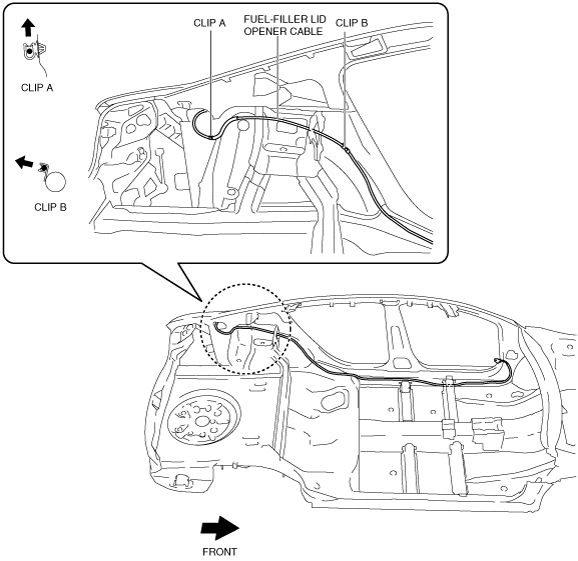

3.  Remove the fuel-filler lid opener cable from clips A and B.

am6zzw00008689

4.  Remove the fuel-filler lid opener cable from clips C, D, and E.

am6zzw00008690

5.  Remove the fuel-filler lid opener cable from clips F and G.

am6zzw00008691

6.  Pull the fuel-filler lid opener cable from the crossmember.

7.  Install in the reverse order of removal.


WGN

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(6)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(7)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(8)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(9)  Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(10)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

3.  Remove the fuel-filler lid opener cable from clips A, B, and C.

am6zzw00008692

4.  Remove the fuel-filler lid opener cable from clips D, E, and F.

am6zzw00008693

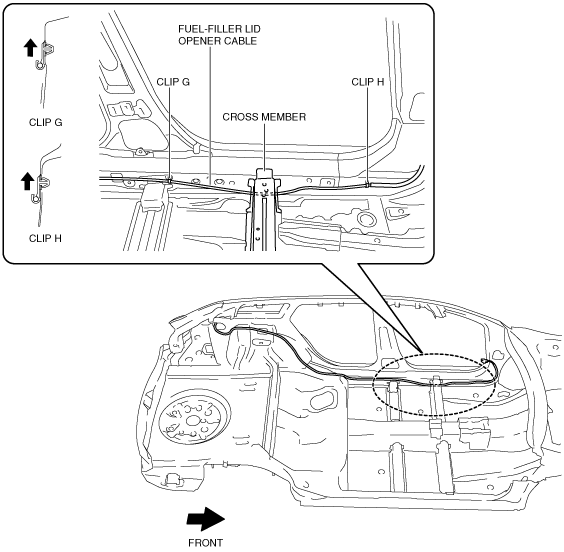

5.  Remove the fuel-filler lid opener cable from clips G and H.

am6zzw00008694

6.  Pull the fuel-filler lid opener cable from the crossmember.

7.  Install in the reverse order of removal.


R.H.D.


4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  B-pillar lower trim (RH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(6)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)
(7)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(8)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(9)  Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(10)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

3.  Remove the fuel-filler lid opener cable from clips A and B.

am6zzw00008695

4.  Remove the fuel-filler lid opener cable from clips C and D.

am6zzw00008696

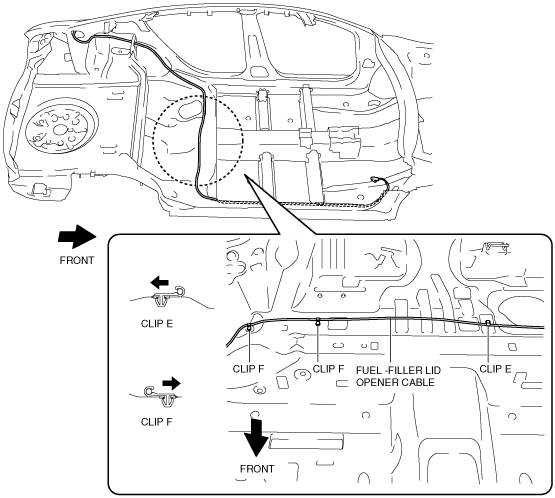

5.  Remove the fuel-filler lid opener cable from clips E and F.

am6zzw00008697

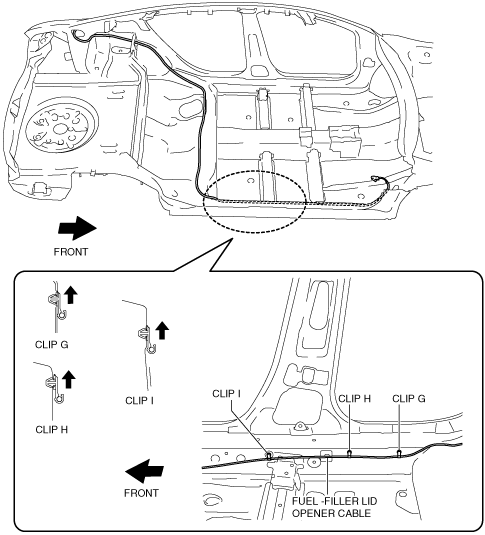

6.  Remove the fuel-filler lid opener cable from clips G, H, and I.

am6zzw00008698

7.  Remove the fuel-filler lid opener cable from clip J.

am6zzw00008699

8.  Pull the fuel-filler lid opener cable from the crossmember.

9.  Install in the reverse order of removal.


WGN

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4)  B-pillar lower trim (RH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(5)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(7)  Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(8)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(9)  Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
(10)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

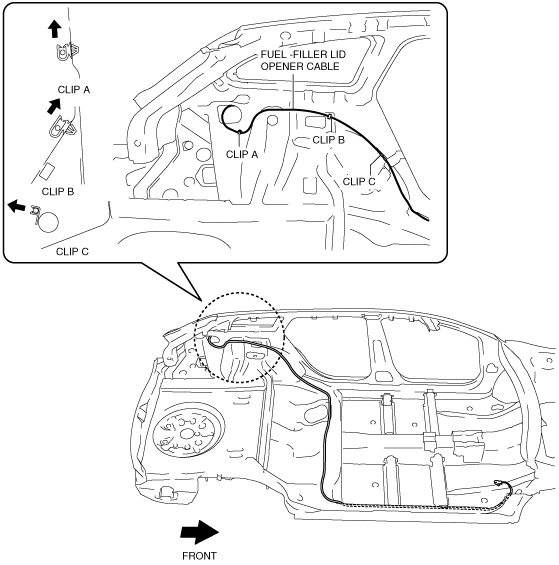

3.  Remove the fuel-filler lid opener cable from clips A, B, and C.

am6zzw00008700

4.  Remove the fuel-filler lid opener cable from clips D and E.

am6zzw00008701

5.  Remove the fuel-filler lid opener cable from clips F and G.

am6zzw00008702

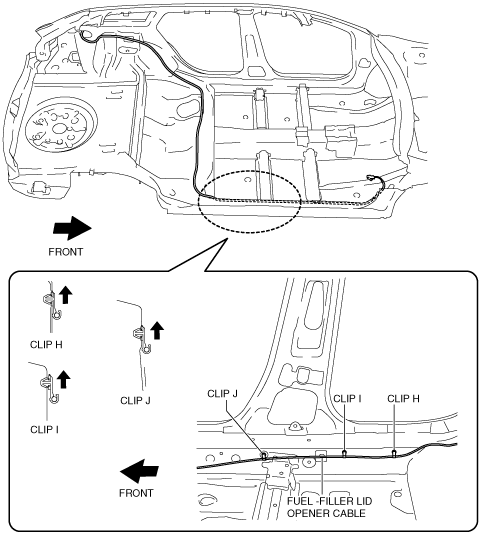

6.  Remove the fuel-filler lid opener cable from clips H, I, and J.

am6zzw00008703

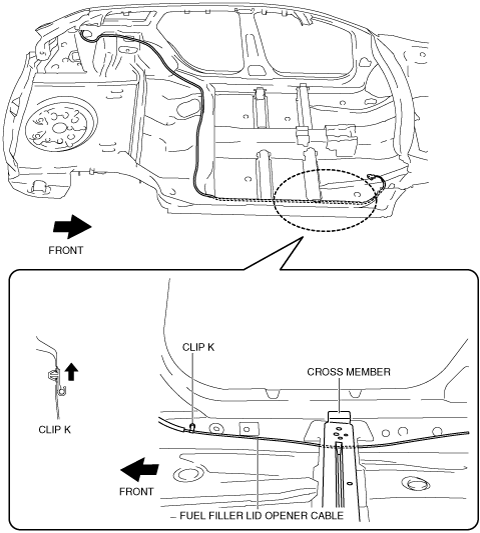

7.  Remove the fuel-filler lid opener cable from clip K.

am6zzw00008704

8.  Pull the fuel-filler lid opener cable from the crossmember.

9.  Install in the reverse order of removal.
