ANTENNA FEEDER NO.2 INSPECTION

id092000812500

4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Rear seat cushion (RH) (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(4)  Rear side seat back (RH) (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(5)  Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(6)  C-pillar trim (RH) (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect antenna feeder No.1.

am6zzw00010680

4.  Disconnect antenna amplifier.

am6zzw00010681

5.  Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.

Without RDS (radio data system)

am6zzw00010682

With RDS (radio data system)

am6zzw00010683

•  If not as indicated in the table, replace antenna feeder No.2.

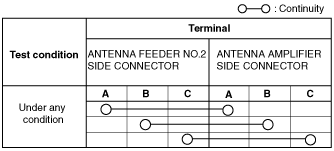

Without RDS (radio data system)

am6zzw00010684

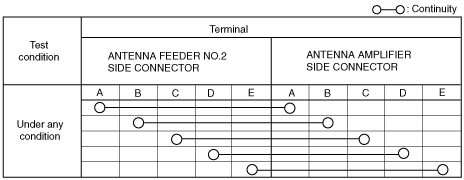

With RDS (radio data system)

am6zzw00010685

WGN

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the following parts:

(1)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (RH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (RH) (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side upper trim. (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

4.  Remove the D-pillar trim (RH) (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

5.  Disconnect antenna feeder No.1.

am6zzw00010680

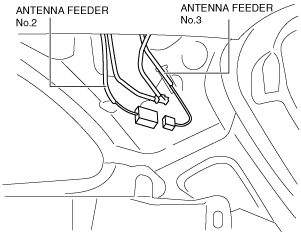

6.  Disconnect antenna feeder No.3.

am6zzw00010686

7.  Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.

Without RDS (radio data system)

am6zzw00010687

With RDS (radio data system)

am6zzw00010688

•  If not as indicated in the table, replace antenna feeder No.2.

Without RDS (radio data system)

am6zzw00010689

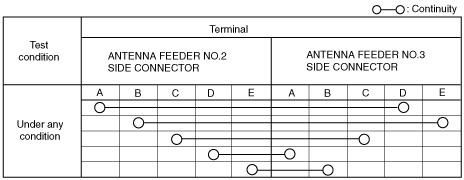

With RDS (radio data system)

am6zzw00010690
