AUTOMATIC TRANSAXLE LOCATION INDEX [EW6A-EL/EW6AX-EL]
id0517006602l4

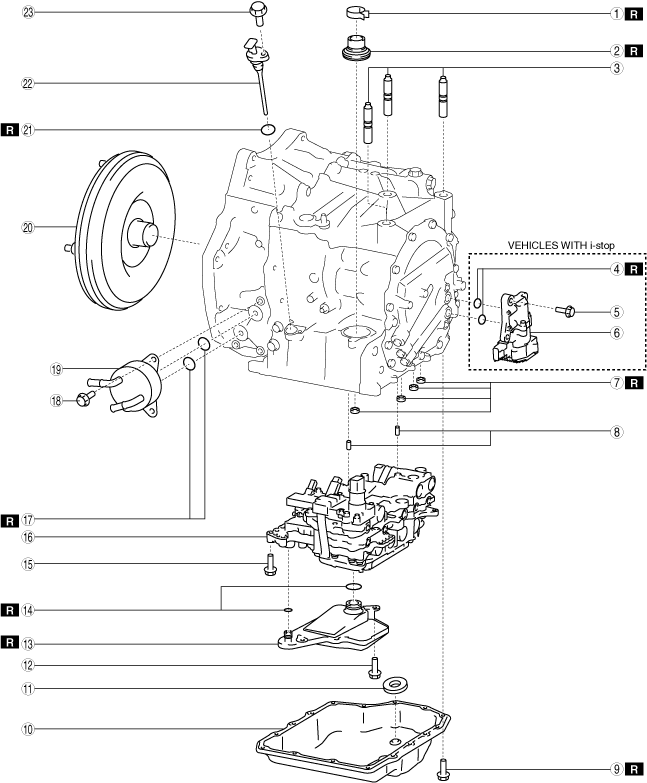

Automatic Transaxle 1
bfw2za00000221
|
|
1
|
Hose clamp
|
|
2
|
Oil seal
|
|
3
|
Stud bolt
|
|
4
|
O-ring (Vehicles with i-stop)
|
|
5
|
3 bolts (Vehicles with i-stop)
|
|
6
|
Electric AT oil pump (Vehicles with i-stop)
|
|
7
|
Gasket
|
|
8
|
Dowel pin
|
|
9
|
16 bolts
|
|
10
|
Oil pan
|
|
11
|
Magnet
|
|
12
|
2 bolts
|
|
13
|
Oil strainer
|
|
14
|
O-ring
|
|
15
|
11 bolts
|
|
16
|
Control valve body
(See Reduction Planetary Gear.)
|
|
17
|
O-ring
|
|
18
|
3 bolts
|
|
19
|
Oil cooler
(See OIL COOLER CLEANING.)
(See OIL COOLER INSPECTION.)
|
|
20
|
Torque converter
(See TORQUE CONVERTER CLEANING.)
(See TORQUE CONVERTER INSPECTION.)
|
|
21
|
O-ring
|
|
22
|
Dipstick
|
|
23
|
Bolt
|
Automatic Transaxle 2
bfw2za00000222
|
|
1
|
Oil seal
|
|
2
|
25 bolts
|
|
3
|
Converter housing
|
|
4
|
Shim
|
|
5
|
Bearing race
|
|
6
|
2 bolts
|
|
7
|
O-ring
|
|
8
|
Baffle plate
|
|
9
|
O-ring
|
|
10
|
Bearing race
|
|
11
|
Shim
|
|
12
|
Service hole cover (With service hole cover)
|

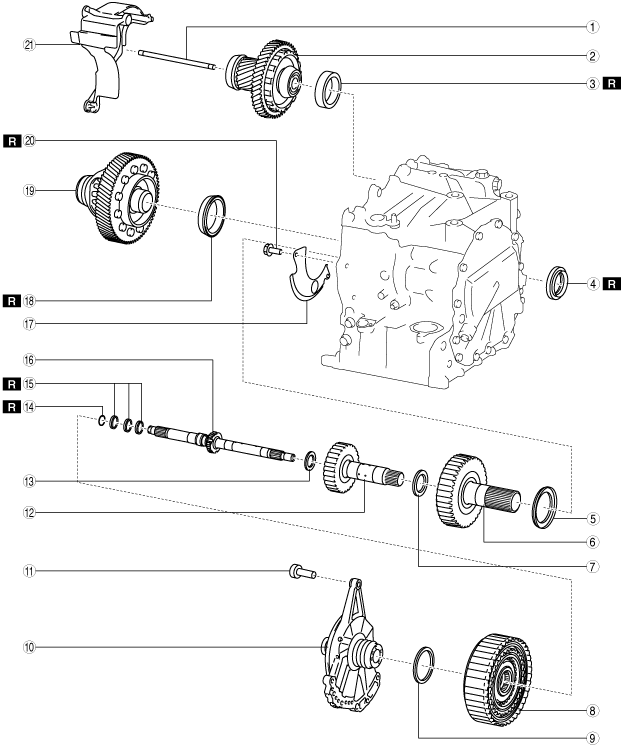

Automatic Transaxle 3
bfw2za00000223
|
|
1
|
Oil pipe
|
|
2
|
Secondary gear and output gear
|
|
3
|
Bearing race
|
|
4
|
Oil seal
|
|
5
|
Thrust needle bearing
|
|
6
|
Low clutch hub
(See LOW CLUTCH HUB INSPECTION.)
|
|
7
|
Thrust needle bearing
|
|
8
|
High clutch component and low clutch component
|
|
9
|
Thrust needle bearing
|
|
10
|
Oil pump
(See Oil Pump.)
|
|
11
|
7 bolts
|
|
12
|
High clutch hub
(See HIGH CLUTCH HUB INSPECTION.)
|
|
13
|
Thrust needle bearing
|
|
14
|
D-ring
|
|
15
|
Seal ring
|
|
16
|
Turbine shaft
|
|
17
|
Baffle plate
|
|
18
|
Tapered roller bearing
|
|
19
|
Ring gear and differential
(See Ring Gear and Differential.)
|
|
20
|
2 bolts
|
|
21
|
Baffle plate
|

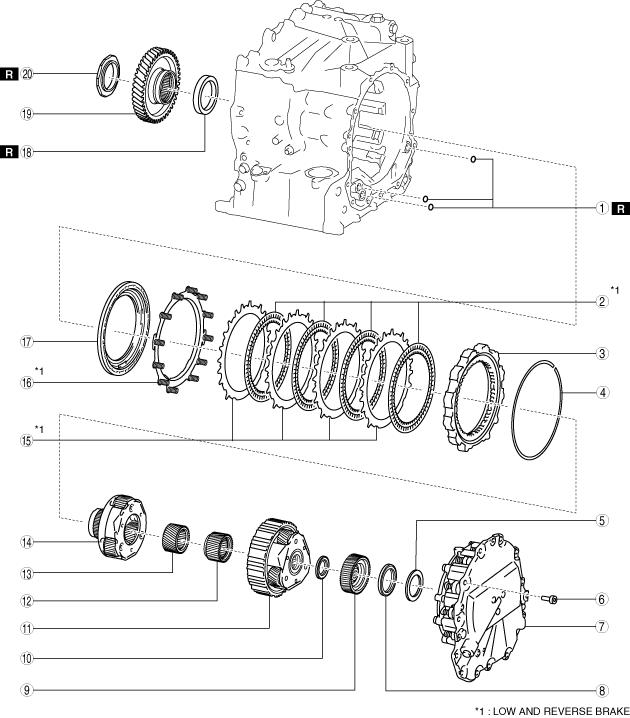

Automatic Transaxle 4
bfw2za00001193
|
|
1
|
O-ring
|
|
2
|
Drive plate
|
|
3
|
One-way clutch
(See ONE-WAY CLUTCH INSPECTION.)
|
|
4
|
Snap ring
|
|
5
|
Shim
|
|
6
|
12 bolts
|
|
7
|
End cover component
(See End Cover Component.)
|
|
8
|
Thrust needle bearing
|
|
9
|
Reduction sun gear
|
|
10
|
Thrust needle bearing
|
|
11
|
Rear planetary gear
(See Rear Planetary Gear.)
|
|
12
|
Rear sun gear
|
|
13
|
Front sun gear
|
|
14
|
Front planetary gear
|
|
15
|
Driven plate
|
|
16
|
Springs and retainer component
|
|
17
|
Low and reverse brake piston
|
|
18
|
Angular contact ball bearing
|
|
19
|
Primary gear
|
|
20
|
Locknut
|

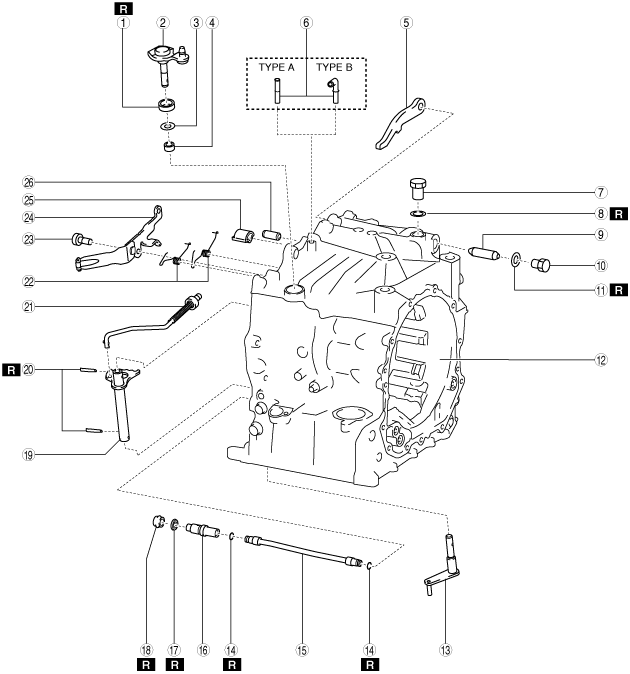

Automatic Transaxle 5
bfw2za00000225
|
|
1
|
Oil seal
|
|
2
|
Parking shift lever component
|
|
3
|
Washer
|
|
4
|
Radial needle bearing
|
|
5
|
Parking pawl
|
|
6
|
Breather pipe
|
|
7
|
Plug
|
|
8
|
Gasket
|
|
9
|
Parking pawl shaft
|
|
10
|
Plug
|
|
11
|
Gasket
|
|
12
|
Transaxle case
|
|
13
|
Parking assist lever component
|
|
14
|
O-ring
|
|
15
|
Oil pipe
|
|
16
|
Connector
|
|
17
|
Gasket
|
|
18
|
Gasket
|
|
19
|
Manual plate component
|
|
20
|
Roll pin
|
|
21
|
Parking rod component
|
|
22
|
Pawl return spring
|
|
23
|
2 bolts
|
|
24
|
Detent bracket component
|
|
25
|
Support actuator
|
|
26
|
Parking pawl pin
|

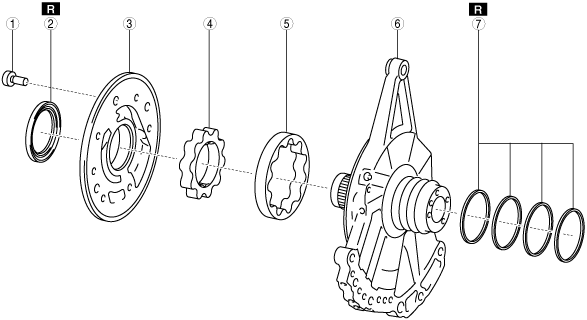

Oil Pump
bfw2za00000226
|
|
1
|
7 bolts
(See OIL PUMP DISASSEMBLY.)
(See OIL PUMP ASSEMBLY.)
|
|
2
|
Oil seal
(See OIL PUMP DISASSEMBLY.)
(See OIL PUMP ASSEMBLY.)
|
|
3
|
Oil pump cover
(See OIL PUMP DISASSEMBLY.)
(See OIL PUMP ASSEMBLY.)
(See OIL PUMP INSPECTION.)
|
|
4
|
Inner rotor
(See OIL PUMP DISASSEMBLY.)
(See OIL PUMP ASSEMBLY.)
(See OIL PUMP INSPECTION.)
|
|
5
|
Outer rotor
(See OIL PUMP DISASSEMBLY.)
(See OIL PUMP ASSEMBLY.)
(See OIL PUMP INSPECTION.)
|
|
6
|
Oil pump housing
(See OIL PUMP DISASSEMBLY.)
(See OIL PUMP ASSEMBLY.)
(See OIL PUMP INSPECTION.)
|
|
7
|
Seal ring
(See OIL PUMP DISASSEMBLY.)
(See OIL PUMP ASSEMBLY.)
|
High Clutch Component And Low Clutch Component
bfw2za00001194
|
|
1
|
High clutch piston
|
|
2
|
Seal plate
|
|
3
|
Snap ring
|
|
4
|
Drive plate
(See HIGH CLUTCH INSPECTION.)
|
|
5
|
Retaining plate
|
|
6
|
Snap ring
|
|
7
|
Drive plate
(See LOW CLUTCH INSPECTION.)
|
|
8
|
Retaining plate
|
|
9
|
Snap ring
|
|
10
|
Driven plate
|
|
11
|
Wave spring
|
|
12
|
Driven plate
|
|
13
|
Springs and retainer component
(See HIGH CLUTCH INSPECTION.)
|
|
14
|
High clutch drum and low clutch drum component
(See HIGH CLUTCH INSPECTION.)
|

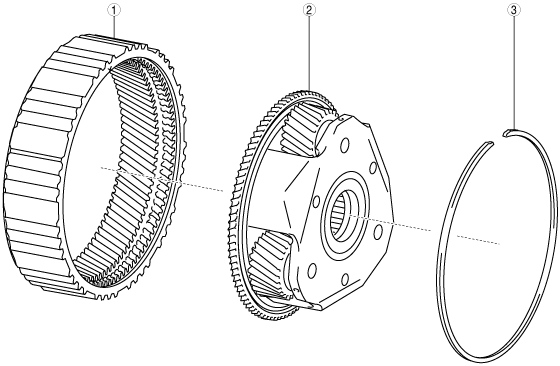

Rear Planetary Gear
bfw2za00000227
|
|
1
|
Front internal gear
(See REAR PLANETARY GEAR ASSEMBLY.)
|
|
2
|
Rear planetary carrier
(See REAR PLANETARY GEAR ASSEMBLY.)
|
|
3
|
Snap ring
(See REAR PLANETARY GEAR ASSEMBLY.)
|

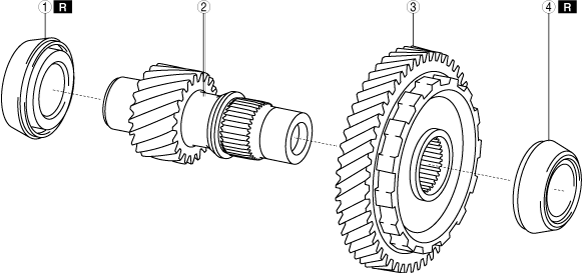

Secondary Gear and Output Gear
bfw2za00000228
|
|
1
|
Tapered roller bearing
|
|
2
|
Output gear
|
|
3
|
Secondary gear
|
|
4
|
Tapered roller bearing
|

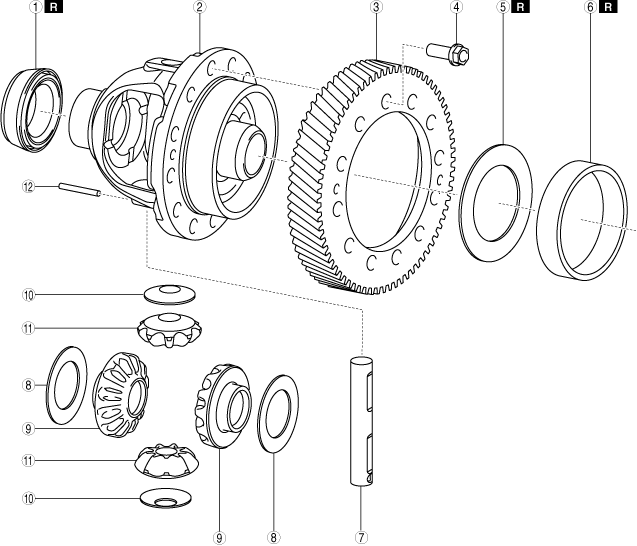

Ring Gear and Differential
bfw2za00001211
|
|
1
|
Tapered roller bearing
|
|
2
|
Differential gear case
|
|
3
|
Ring gear
|
|
4
|
12 bolts
|
|
5
|
Shim
|
|
6
|
Bearing race
|
|
7
|
Pinion shaft
|
|
8
|
Thrust washer
|
|
9
|
Side gear
|
|
10
|
Thrust washer
|
|
11
|
Pinion gear
|
|
12
|
Pin
|

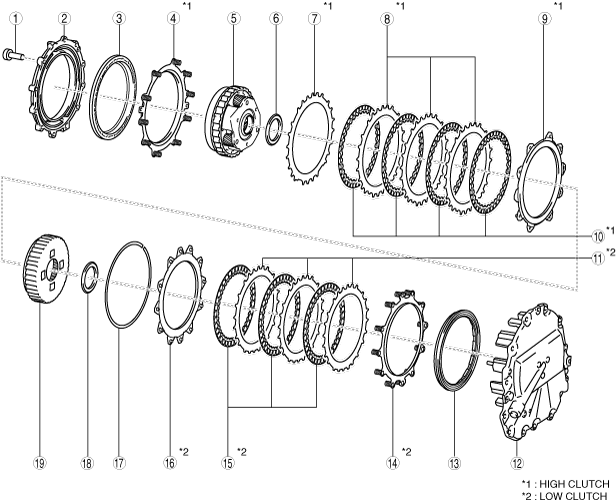

End Cover Component
bfw2za00001195
|
|
1
|
8 bolts
|
|
2
|
Brake housing
|
|
3
|
2-6 brake piston
|
|
4
|
Springs and retainer component
|
|
5
|
Reduction planetary gear
(See Reduction Planetary Gear.)
|
|
6
|
Thrust needle bearing
|
|
7
|
Retaining plate
|
|
8
|
Driven plate
|
|
9
|
Retaining plate
|
|
10
|
Drive plate
(See 2-6 BRAKE INSPECTION.)
|
|
11
|
Driven plate
|
|
12
|
End cover
(See END COVER INSPECTION.)
|
|
13
|
R-3-5 brake piston
|
|
14
|
Springs and retainer component
|
|
15
|
Drive plate
(See R-3-5 BRAKE INSPECTION.)
|
|
16
|
Retaining plate
|
|
17
|
Snap ring
|
|
18
|
Thrust needle bearing
|
|
19
|
Reduction internal gear
|

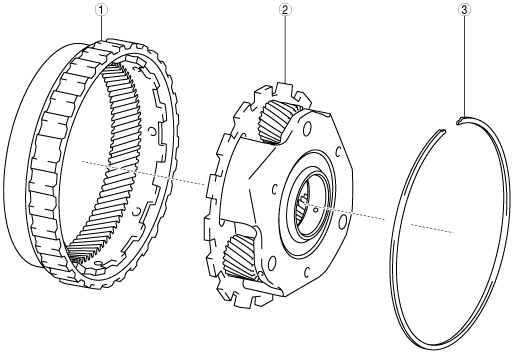

Reduction Planetary Gear
bfw2za00000231
|
|
1
|
Rear internal gear
|
|
2
|
Reduction planetary carrier
|
|
3
|
Snap ring
|

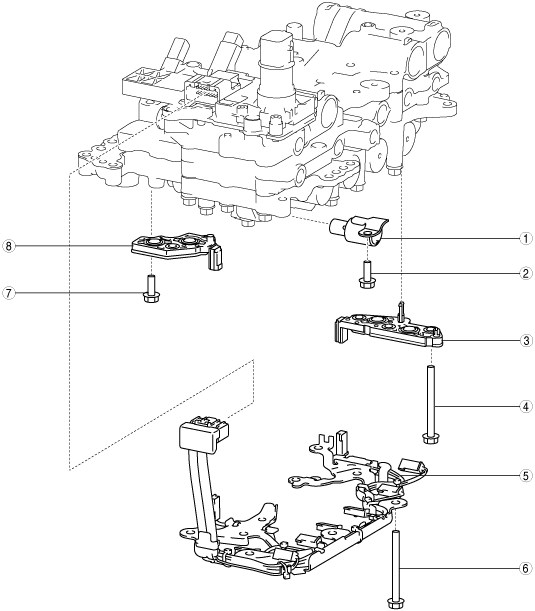

Control Valve Body
azzjjw00001437
|
|
1
|
ON/OFF solenoid
(See CONTROL VALVE BODY ASSEMBLY.)
|
|
2
|
Bolt
(See CONTROL VALVE BODY ASSEMBLY.)
|
|
3
|
Oil pressure switch A
(See CONTROL VALVE BODY ASSEMBLY.)
|
|
4
|
3 bolts
(See CONTROL VALVE BODY ASSEMBLY.)
|
|
5
|
Coupler component
(See CONTROL VALVE BODY ASSEMBLY.)
|
|
6
|
8 bolts
(See CONTROL VALVE BODY ASSEMBLY.)
|
|
7
|
3 bolts
(See CONTROL VALVE BODY ASSEMBLY.)
|
|
8
|
Oil pressure switch B
(See CONTROL VALVE BODY ASSEMBLY.)
|
