TRUNK LID REMOVAL/INSTALLATION

id091000801600

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

2.  Remove the trunk lid recess. (See TRUNK LID RECESS REMOVAL/INSTALLATION.)

3.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

4.  Set the trunk side trim aside. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

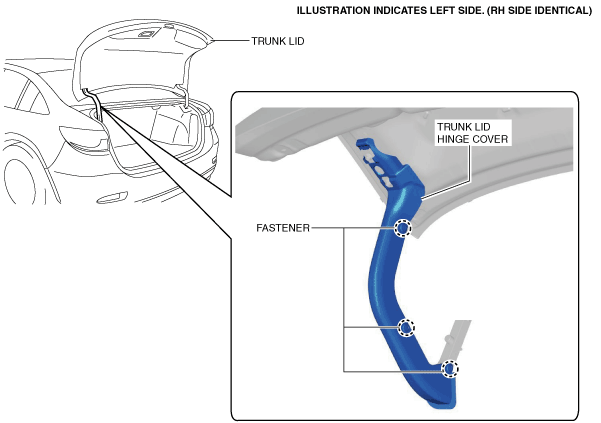

5.  Remove fasteners.

am6xuw00007445

6.  Remove the trunk lid hinge cover.

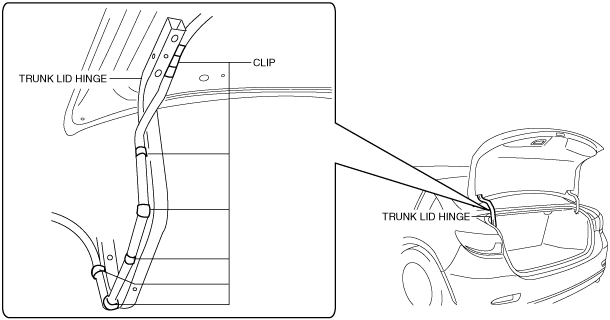

7.  Remove clips shown in the figure.

am6xuw00007446

8.  Set the rear body control module (RBCM) bracket aside. (See REAR BODY CONTROL MODULE (RBCM) BRACKET REMOVAL/INSTALLATION.)

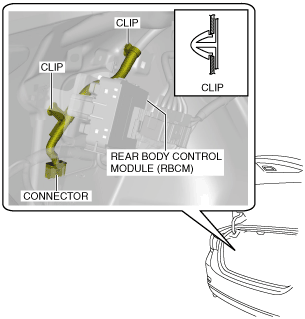

9.  Disconnect the connector.

am6xuw00007447

10.  Remove clips.

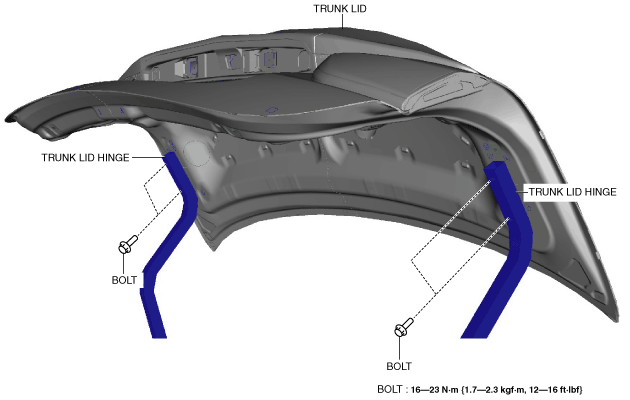

11.  Remove bolts, then remove the trunk lid.

am6xuw00007448

12.  Remove the following parts:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.)

(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(5)  High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION)

(6)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

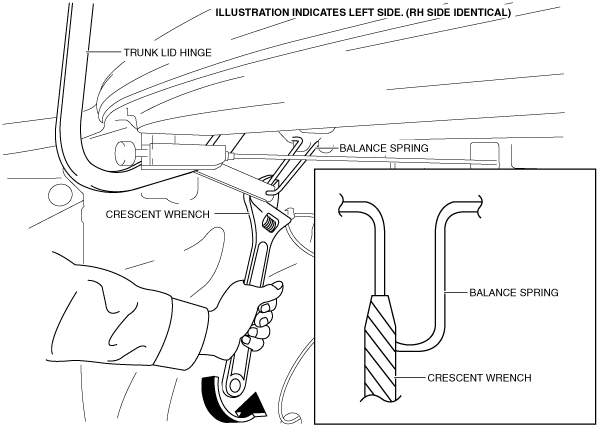

13.  Using a crescent wrench, remove the balance spring in the direction of the arrow shown in the figure from trunk lid hinge.

am6xuw00007449

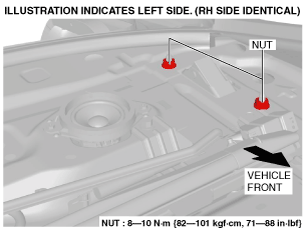

14.  Remove nuts.

am6xuw00007450

15.  Remove the trunk lid hinge.

16.  Install in the reverse order of removal.

17.  Adjust the trunk lid. (See TRUNK LID ADJUSTMENT.)
