TRUNK LID ADJUSTMENT

id091000801700

Gap Adjustment

1. Measure the gap difference between the trunk lid and the body.

2. If not as specified, loosen the bolts or nuts, and reposition the trunk lid.

am6zzw00013146

Standard Clearance

a: 2.5—4.5 mm {0.10—0.17 in}

b: 4.0—8.0 mm {0.16—0.31 in}

c: 2.5—6.5 mm {0.10—0.25 in}

3. Tighten the bolts or nuts. (See TRUNK LID REMOVAL/INSTALLATION)

Height Difference Adjustment

1. Measure the height difference between the trunk lid and the body.

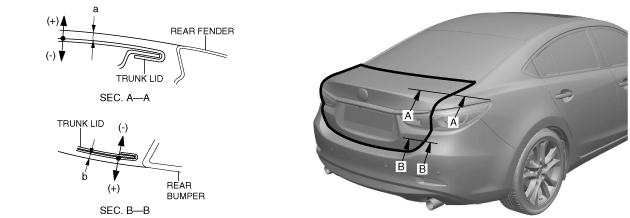

am6zzw00013147

Standard Clearance

a: -1.8—0.2 mm {-0.070—0.007 in}

b: -3.0—1.0 mm {-0.11—0.03 in}

2. If the trunk lid does not open/close smoothly, adjust it by loosening the trunk lid lock striker installation screw. (See TRUNK LID LOCK STRIKER REMOVAL/INSTALLATION.)

3. Tighten the bolts or nuts. (See TRUNK LID REMOVAL/INSTALLATION)

4. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
