SEATS LOCATION INDEX

id091300800100

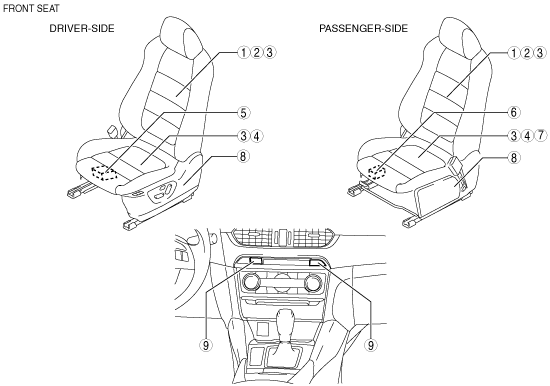

am6zzw00013640

1	Front seat (See FRONT SEAT REMOVAL/INSTALLATION.) (See TILT MOTOR INSPECTION.) (See SLIDE MOTOR INSPECTION.) (See LIFT MOTOR INSPECTION.) (See RECLINER MOTOR INSPECTION.)
2	Front seat back (See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION.) (See FRONT SEAT BACK FRAME REMOVAL/INSTALLATION.) (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.) (See LUMBAR SUPPORT UNIT REMOVAL/INSTALLATION.) (See LUMBAR SUPPORT MOTOR INSPECTION.)
3	Front seat warmer unit (See FRONT SEAT WARMER UNIT INSPECTION.)
4	Front seat cushion (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.) (See FRONT SEAT CUSHION FRAME/ADJUSTER UNIT REMOVAL/INSTALLATION.)
5	Position memory control module (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION.) (See POSITION MEMORY CONTROL MODULE INSPECTION.)
6	Front seat warmer control unit (See FRONT SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION.) (See FRONT SEAT WARMER CONTROL UNIT INSPECTION.)
7	Occupancy sensor (See OCCUPANCY SENSOR INSPECTION.)
8	Front seat side cover (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.) (See POWER SEAT SWITCH REMOVAL/INSTALLATION.) (See POWER SEAT SWITCH INSPECTION.) (See POSITION MEMORY SWITCH REMOVAL/INSTALLATION.) (See POSITION MEMORY SWITCH INSPECTION.)
9	Front seat warmer switch (See FRONT SEAT WARMER SWITCH REMOVAL/INSTALLATION.)

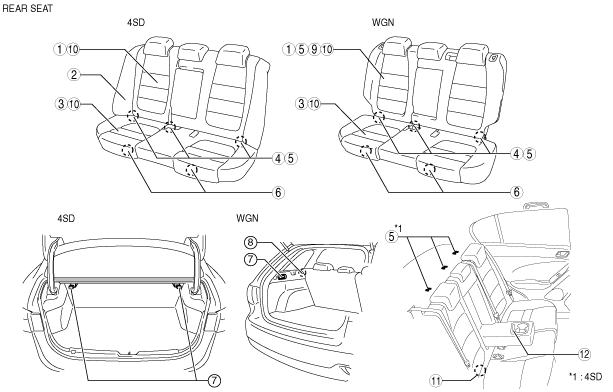

am6zzw00013641

1	Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.) (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.) (See REAR SEAT BACK TRIM REMOVAL/INSTALLATION.) (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.) (See REAR SEAT CENTER ARMREST TRIM REMOVAL/INSTALLATION.)
2	Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION.) (See REAR SEAT SIDE BACK TRIM REMOVAL/INSTALLATION.)
3	Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.) (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION.)
4	Rear seat hinge (See REAR SEAT HINGE REMOVAL/INSTALLATION.)
5	Child-restraint seat anchor (See CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION.)
6	Rear seat cushion lock (See REAR SEAT CUSHION LOCK REMOVAL/INSTALLATION.)
7	Remote handle lever (See REMOTE HANDLE LEVER REMOVAL/INSTALLATION.)
8	Rear seat back striker (See REAR SEAT BACK STRIKER REMOVAL/INSTALLATION.)
9	Rear seat back latch (See REAR SEAT BACK LATCH REMOVAL/INSTALLATION.)
10	Rear seat warmer unit (See REAR SEAT WARMER UNIT INSPECTION.)
11	Rear seat warmer control unit (See REAR SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION.) (See REAR SEAT WARMER CONTROL UNIT INSPECTION.)
12	Rear seat warmer switch (See REAR SEAT WARMER SWITCH REMOVAL/INSTALLATION.) (See REAR SEAT WARMER SWITCH INSPECTION.)
