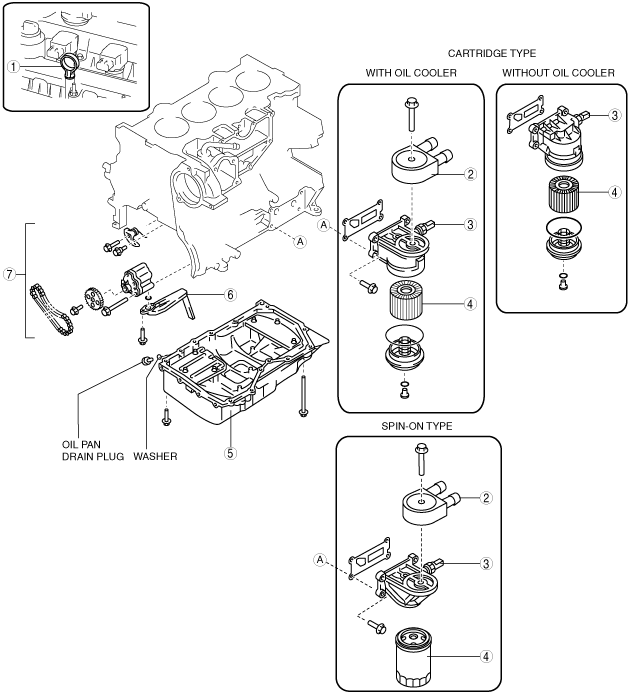

LUBRICATION SYSTEM LOCATION INDEX [L8, LF, L5]

id0111c3800100

L8, LF

am6zzw00003764

L5

am6zzw00007402

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [L8, LF, L5].) (See ENGINE OIL REPLACEMENT [L8, LF, L5].)
2	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [LF, L5].)
3	Oil pressure switch (See OIL PRESSURE INSPECTION [L8, LF, L5].)
4	Oil filter (See OIL FILTER REPLACEMENT [L8, LF, L5].)
5	Oil pan (See OIL PAN REMOVAL/INSTALLATION [L8, LF, L5].)
6	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [L8, LF, L5].)
7	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [L8, LF, L5].)
