OIL PAN REMOVAL/INSTALLATION [L8, LF, L5]


id0111c3800200

Warning
•  Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
•  A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
•  Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

1.  Disconnect the negative battery cable.

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L8, LF, L5].)

3.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [L8, LF, L5].)

4.  Drain the engine oil. (See ENGINE OIL REPLACEMENT [L8, LF, L5].)

5.  Remove the front wheel and tire (RH). (See GENERAL PROCEDURES (SUSPENSION).)

6.  Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

7.  Loosen the water pump pulley bolts and remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [L8, LF, L5].)

8.  Remove the crankshaft position (CKP) sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [L8, LF, L5].)

9.  Disconnect the drive shaft (RH) from joint shaft, set the drive shaft (RH) out of the way. (ATX) (See DRIVE SHAFT REMOVAL/INSTALLATION.)

10.  Remove the engine front cover. (See TIMING CHAIN REMOVAL/INSTALLATION [L8, LF, L5].)

11.  Remove in the order indicated in the table.

12.  Install in the reverse order of removal.

13.  Refill with the specified type and amount of the engine oil. (See ENGINE OIL REPLACEMENT [L8, LF, L5].)

14.  Start the engine and confirm that there is no oil leakage.

•  If there is oil leakage, repair or replace the applicable part.

15.  Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION [L8, LF, L5].)

16.  Inspect for the ignition timing and idle speed. (See ENGINE TUNE-UP [L8, LF, L5].)

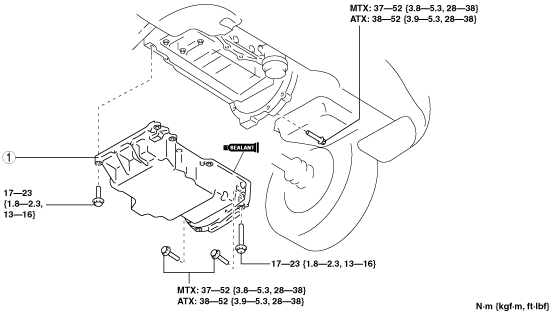

am6zzw00002302

1
Oil pan


Oil Pan Removal Note

1.  Remove the oil pan using a separator tool.

am6zzw00002303


Oil Pan Installation Note

Caution
•  Apply the silicon sealant in a single, unbroken line around the whole perimeter.
•  Using bolts with the old seal adhering could cause cracks in the housing.
am6zzw00002304

1.  Completely clean and remove any oil, dirt, sealant or other foreign material that may be adhering to the housing and oil pan.

2.  When reusing the oil pan installation bolts, clean any old sealant from the bolts.

3.  Apply silicone sealant to the oil pan along the inside of the bolt holes as shown in the figure.

am6zzw00004490

Thickness
2.2—3.2 mm {0.09—0.12 in}

4.  Install the oil pan to the cylinder block.

5.  Use a square ruler to align the oil pan and the cylinder block junction side on the engine front cover side.

am6zzw00002306

6.  Tighten the bolts in the order shown in the figure.

am6zzw00002307

Tightening torque
17—23 N·m {1.8—2.3 kgf·m, 13—16 ft·lbf}

7.  Tighten the oil pan-transaxle installation bolts.

am6zzw00002308

Tightening torque
MTX: 37—52 N·m {3.8—5.3 kgf·m, 28—38 ft·lbf}
ATX: 38—52 N·m {3.9—5.3 kgf·m, 28—38 ft·lbf}
