FUEL SYSTEM LOCATION INDEX [L8, LF, L5]

id0114a5800100

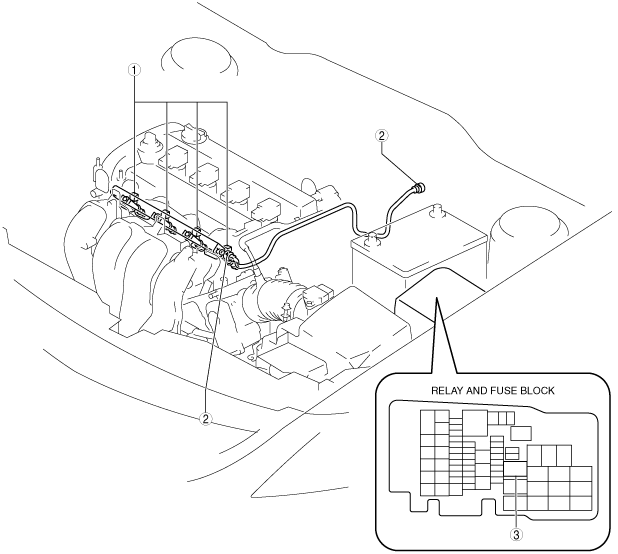

Engine Compartment Side

am6zzw00002223

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [L8, LF, L5].) (See FUEL INJECTOR INSPECTION [L8, LF, L5].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [L8, LF, L5].)
3	Fuel pump relay

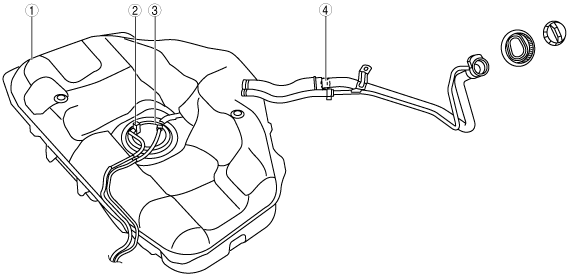

Fuel Tank Side

am6zzw00000251

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [L8, LF, L5].) (See FUEL TANK INSPECTION [L8, LF, L5].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [L8, LF, L5].)
3	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [L8, LF, L5].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [L8, LF, L5].) (See FUEL PUMP UNIT INSPECTION [L8, LF, L5].)
4	Nonreturn valve (See NONRETURN VALVE INSPECTION [L8, LF, L5].)
