DSC LOCATION INDEX

id041500802100

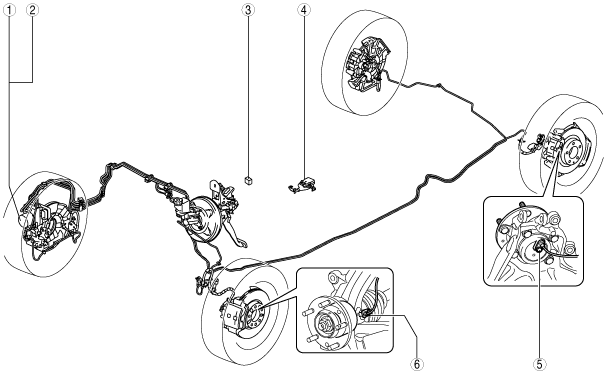

L.H.D.

am6zzw00001885

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC CONFIGURATION.) (See DSC HU/CM INSPECTION.)
2	Brake fluid pressure sensor (Built into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.)
3	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
4	Combined sensor (See COMBINED SENSOR REMOVAL/INSTALLATION.) (See COMBINED SENSOR INSPECTION.)
5	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
6	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)

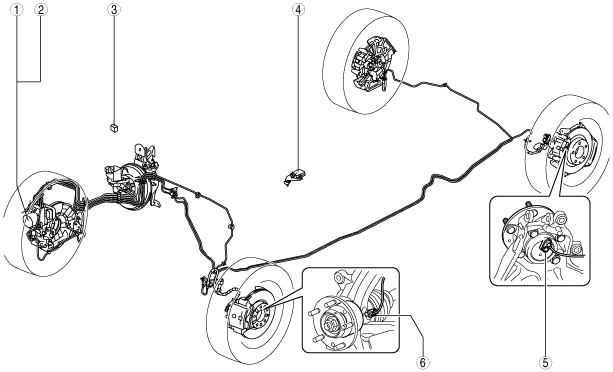

R.H.D.

am6zzw00001886

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION.) (See DSC CONFIGURATION.) (See DSC HU/CM INSPECTION.)
2	Brake fluid pressure sensor (Built into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION.)
3	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
4	Combined sensor (See COMBINED SENSOR REMOVAL/INSTALLATION.) (See COMBINED SENSOR INSPECTION.)
5	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION.)
6	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
