DTC P0882:00 [FS5A-EL]
id050221823100
DTC P0882:00 |
Battery back-up power supply circuit |
---|---|
DETECTION CONDITION
|
• When the signal of the battery back-up power supply circuit is less than 2.5 V.
Diagnostic support note:
• This is a continuous monitor (CCM).
• The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
• The PENDING CODE is available if the TCM detects the above malfunction condition during the first drive cycle.
• FREEZE FRAME DATA is available.
• The AT warning light does not illuminate.
• The DTC is stored in the TCM memory.
|

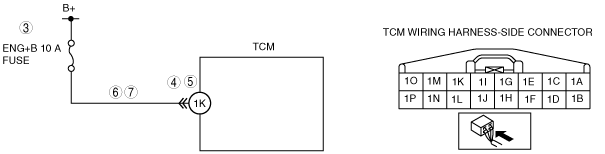

POSSIBLE CAUSE
|
• Melted ENG+B 10 A fuse
• Open circuit in wiring harness between battery positive terminal and TCM terminal 1K
• Short to ground in wiring harness between battery positive terminal and TCM terminal 1K
• Poor connection of TCM connector
• TCM malfunction
|
![]() |
Diagnostic procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has the FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to the available repair information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
3
|
INSPECT FUSE
• Switch the ignition to off.
• Inspect ENG+B 10 A fuse malfunction.
• Is it normal?
|
Yes
|
Go to the next step.
|
No
|
• If fuse has been melted, go to the next step.
• If fuse is not installed correctly, install it correctly, then go to Step 13.
|
||
4
|
INSPECT VOLTAGE OF POWER SUPPLY CIRCUIT
• Switch the ignition to ON (engine off).
• Inspect for voltage TCM connector terminal 1K (wiring harness-side).
• Is the voltage B+?
|
Yes
|
Go to the next step.
|
No
|
Go go to Step 6.
|
||
5
|
INSPECT TERMINAL TCM CONNECTOR FOR POOR CONNECTION
• Switch the ignition to off.
• Disconnect the negative battery cable.
• Disconnect the TCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Are terminals normal?
|
Yes
|
Go go to Step 8.
|
No
|
Replace the couple component, then go to Step 8.
|
||
6
|
INSPECT POWER SUPPLY CIRCUIT FOR SHORT TO GROUND
• Disconnect the positive battery cable.
• Inspect for continuity between the TCM terminal 1K and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness, then go to Step 8.
|
No
|
Go to the next step.
|
||
7
|
INSPECT POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between TCM terminal 1K and ENG+B 10 A fuse terminal (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the harness, then go to the next step.
|
||
8
|
VERIFY TROUBLESHOOTING OF DTC P0882:00 COMPLETED
• Make sure to reconnect all the disconnected connectors.
• Clear the DTC from the memory using the M-MDS.
• Start the engine and warm it up completely.
• Is the same DTC present?
|
Yes
|
Replace the TCM, then go to the next step.
|
No
|
Go to the next step.
|
||
9
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “After Repair Procedure”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [FS5A-EL].)
|
No
|
Troubleshooting completed.
|
