DTC U201F:00 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
id09021c388800
|
DETECTION CONDITION
|
Communication error with keyless receiver
|
|
POSSIBLE CAUSE
|
• Connector or terminal malfunction

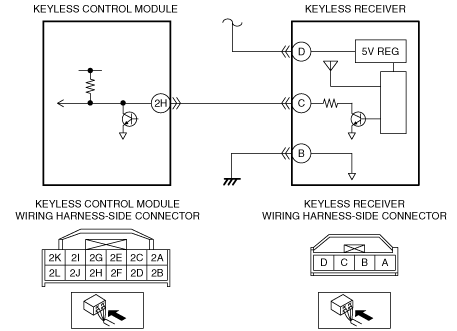

• Short to ground in wiring harness between keyless receiver terminal C and keyless control module terminal 2H
• Open circuit in wiring harness between keyless receiver terminal C and keyless control module terminal 2H
• Keyless receiver malfunction
• Keyless control module malfunction
|
 |
|
Diagnostic Procedure
|
Step |
Inspection |
Action |
|
|---|---|---|---|
|
1
|
INSPECT KEYLESS RECEIVER CONNECTOR CONDITION
• Switch the ignition to off.
• Disconnect the negative battery cable.
• Disconnect the keyless receiver connector.
• Inspect the connector and terminals (corrosion, damage, pin disconnection).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector or terminals, then go to Step 6.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT KEYLESS CONTROL MODULE CONNECTOR CONDITION
• Disconnect the keyless control module connector.
• Inspect the connector and terminals (corrosion, damage, pin disconnection).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector or terminals, then go to Step 6.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT COMMUNICATION CIRCUIT FOR SHORT TO GROUND
• Inspect for continuity between keyless receiver terminal C (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to ground, then go to Step 6.
|
|
No
|
Go to the next step.
|
||
|
4
|
INSPECT COMMUNICATION CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between keyless receiver terminal C (wiring harness-side) and keyless control module terminal 2H (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 6.
|
||
|
5
|
INSPECT KEYLESS RECEIVER
• Inspect the keyless receiver.
• Is there any malfunction?
|
Yes
|
Replace the keyless receiver, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
6
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect the disconnected connectors.
• Reconnect the negative battery cable.
• Clear the DTC from keyless control module memory using the M-MDS.
• Perform the advanced keyless entry and push button start system DTC inspection using the M-MDS.
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
If the malfunction recurs, replace the keyless control module, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
7
|
VERIFY THAT NO OTHER DTCs ARE PRESENT
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
||
