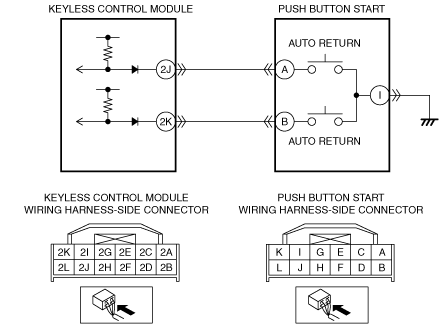

DTC B108B:29 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]


id09021c398900

DETECTION CONDITION
Mismatch state of push button start 1 and 2
POSSIBLE CAUSE
•  Connector or terminal malfunction
•  Short to ground in wiring harness between push button start terminal A and keyless control module terminal 2J
•  Short to ground in wiring harness between push button start terminal B and keyless control module terminal 2K
•  Short to power supply in wiring harness between push button start terminal A and keyless control module terminal 2J
•  Short to power supply in wiring harness between push button start terminal B and keyless control module terminal 2K
•  Push button start malfunction
•  Open circuit in wiring harness between push button start terminal A and keyless control module terminal 2J
•  Open circuit in wiring harness between push button start terminal B and keyless control module terminal 2K
•  Keyless control module malfunction

Diagnostic Procedure

Step

Inspection

Action

1
INSPECT PUSH BUTTON START CONNECTOR CONDITION
•  Switch the ignition to off.
•  Disconnect the negative battery cable.
•  Disconnect the push button start connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 7.
No
Go to the next step.
2
INSPECT KEYLESS CONTROL MODULE CONNECTOR CONDITION
•  Disconnect the keyless control module connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to Step 7.
No
Go to the next step.
3
INSPECT PUSH BUTTON START CIRCUIT FOR SHORT TO GROUND
•  Inspect for continuity between the following terminals and body ground:
―  Push button start terminal A (wiring harness-side)
―  Push button start terminal B (wiring harness-side)
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground, then go to Step 7.
No
Go to the next step.
4
INSPECT PUSH BUTTON START CIRCUIT FOR SHORT TO POWER SUPPLY
•  Reconnect the negative battery cable.
•  Switch the ignition to ON.
•  Measure the voltage between the following terminals and body ground:
―  Push button start terminal A (wiring harness-side)
―  Push button start terminal B (wiring harness-side)
•  Is there any voltage?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 7.
No
Go to the next step.
5
INSPECT PUSH BUTTON START
•  Switch the ignition to off.
•  Disconnect the negative battery cable.
•  Is there any malfunction?
Yes
Replace the push button start, then go to Step 7.
No
Go to the next step.
6
INSPECT PUSH BUTTON START CIRCUIT FOR OPEN CIRCUIT
•  Inspect for continuity between the following terminals:
―  Push button start terminal A (wiring harness-side) and keyless control module terminal 2J (wiring harness-side)
―  Push button start terminal B (wiring harness-side) and keyless control module terminal 2K (wiring harness-side)
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground, then go to the next step.
No
Go to the next step.
7
VERIFY TROUBLESHOOTING COMPLETED
•  Make sure to reconnect the disconnected connectors.
•  Reconnect the negative battery cable.
•  Clear the DTC from keyless control module memory using the M-MDS.
•  Perform the advanced keyless entry and push button start system DTC inspection using the M-MDS.
•  Is the same DTC present?
Yes
Repeat the inspection from Step 1.
If the malfunction recurs, replace the keyless control module, then go to the next step.
No
Go to the next step.
8
VERIFY THAT NO OTHER DTCs ARE PRESENT
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
DTC troubleshooting completed.
