DTC U0028:87 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]


id09021c399500

DETECTION CONDITION
No communication with BCM
POSSIBLE CAUSE
•  Connector or terminal malfunction

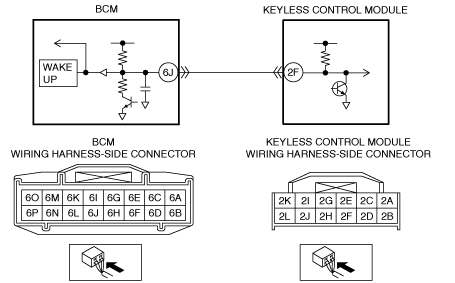

•  Short to ground in wiring harness between BCM terminal 6J and keyless control module terminal 2F
•  Open circuit in wiring harness between BCM terminal 6J and keyless control module terminal 2F
•  BCM malfunction
•  Keyless control module malfunction

Diagnostic Procedure

Step

Inspection

Action

1
INSPECT BCM CONNECTOR
•  Switch the ignition to off.
•  Disconnect the negative battery cable.
•  Disconnect the BCM connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 6.
2
INSPECT KEYLESS CONTROL MODULE CONNECTOR
•  Disconnect the keyless control module connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 6.
3
INSPECT FOR SHORT TO GROUND IN WIRING HARNESS BETWEEN BCM AND KEYLESS CONTROL MODULE
•  Verify that the BCM connector and keyless control module connectors are disconnected.
•  Inspect for continuity between BCM terminal 6J (wiring harness-side) and body ground.
•  Is there continuity?
Yes
Refer to the wiring diagram and verify whether or not there is a common connector between keyless control module terminal 2F and BCM terminal 6J.
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
•  Repair or replace the malfunctioning part.
If there is no common connector:
•  Repair or replace the wiring harness which has a short to ground.
Go to Step 6.
No
Go to the next step.
4
INSPECT FOR OPEN CIRCUIT IN WIRING HARNESS BETWEEN BCM AND KEYLESS CONTROL MODULE
•  Verify that the BCM and keyless control module connectors are disconnected.
•  Inspect for continuity between keyless control module terminal 2F (wiring harness-side) and BCM terminal 6J (wiring harness-side).
•  Is there continuity?
Yes
Go to the next step.
No
Refer to the wiring diagram and verify whether or not there is a common connector between keyless control module terminal 2F and BCM terminal 6J.
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.
•  Repair or replace the malfunctioning part.
If there is no common connector:
•  Repair or replace the wiring harness which has an open circuit.
Go to Step 6.
5
PERFORM DTC INSPECTION AND VERIFY BCM MALFUNCTION
•  Make sure to reconnect all disconnected connectors.
•  Reconnect the negative battery cable.
•  Clear the DTC for the keyless control module using the M-MDS.
•  Retrieve the keyless control module DTCs using the M-MDS.
•  Is the same DTC displayed?
Yes
Replace the BCM, then go to the next step.
No
Go to Step 7.
6
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Reconnect the negative battery cable.
•  Clear the DTC for the keyless control module using the M-MDS.
•  Retrieve the keyless control module DTCs using the M-MDS.
•  Is the same DTC displayed?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the keyless control module.
Go to the next step.
No
Go to the next step.
7
VERIFY IF OTHER DTCs DISPLAYED
•  Are any other DTCs displayed?
Yes
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
No
DTC troubleshooting completed.
