SECURITY LIGHT: 11, DTC: B10D9:87/P1260:00 [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)]

id09021d353000

DTC

Security light flashing pattern

11

No detected communication with coil antenna

M-MDS display

Keyless control module

B10D9:87

PCM

P1260:00

POSSIBLE CAUSE

•  The coil antenna connector is pulled out

•  Coil antenna malfunction

•  Keyless control module malfunction

•  Related wiring harnesses malfunction

DTC	Security light flashing pattern	11	No detected communication with coil antenna
POSSIBLE CAUSE	• The coil antenna connector is pulled out • Coil antenna malfunction • Keyless control module malfunction • Related wiring harnesses malfunction

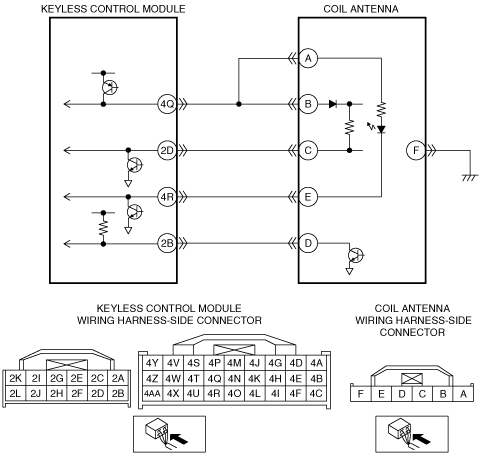

System Wiring Diagram

am6zzw00002833

Diagnostic Procedure

Step

Inspection

Action

1

VERIFY DTCs

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Verify DTCs using the M-MDS.
(See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Is the DTC displayed again?

―  Keyless control module: B10E6:11

Yes

Inspect B10E6:11.

(See SECURITY LIGHT: NOT ILLUMINATED, DTC B10E6:11/- [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

No

Go to the next step.

2

VERIFY COIL ANTENNA CORRECTLY INSTALLED

•  Verify the installation condition of the coil antenna.

•   Is the coil antenna correctly installed?

Yes

Go to the next step.

No

Install the coil antenna correctly, then go to Step 10.

(See COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

3

INSPECT COIL ANTENNA POWER SUPPLY

•  Switch the ignition to off.

•  Disconnect the coil antenna connector.

•  Connect the negative battery cable.

•  Switch the ignition to ON.

•  Measure the voltage at coil antenna connector terminal B.

―  Is the voltage 8 V or more?

Yes

Go to step 5.

No

Go to the next step.

4

INSPECTION KEYLESS CONTROL MODULE

•  Measure the voltage at keyless control module connector terminal 4Q.

―  Is the voltage 8 V or more?

Yes

Repair or replace the wiring harness, then go to Step 10.

No

Replace the keyless control module.

(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

Go to Step 10.

5

INSPECT WIRING HARNESS BETWEEN COIL ANTENNA AND GROUND

•  Switch the ignition to off.

•  Disconnect the negative battery cable.

•  Measure the continuity of the wiring harness between coil antenna connector terminal F and ground.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness, then go to Step 10.

6

INSPECT COMMUNICATION CIRCUIT (INPUT) FOR CONTINUITY

•  Disconnect the keyless control module connector.

•  Measure the continuity of the wiring harness between coil antenna connector terminal C and keyless control module connector terminal 2D.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness between the coil antenna and the keyless control module, then go to Step 10.

7

INSPECT COMMUNICATION CIRCUIT (OUTPUT) FOR CONTINUITY

•  Measure the continuity of the wiring harness between coil antenna connector terminal D and keyless control module connector terminal 2B.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness between the coil antenna and the keyless control module, then go to Step 10.

8

INSPECT COIL ANTENNA INPUT SIGNAL CIRCUIT

•  Connect the coil antenna connector.

•  Connect the negative battery cable.

•  Switch the ignition to ON.

•  Measure the voltage at coil antenna connector terminal C.

―  Is the voltage 8 V or more?

Yes

Go to the next step.

No

Replace the coil antenna.

(See COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

Go to Step 10.

9

INSPECT COMMUNICATION CIRCUIT (OUTPUT) FOR CONTINUITY

•  Measure the continuity of the wiring harness between coil antenna connector terminal D and ground.

•  Is there continuity?

Yes

Go to the next step.

No

Replace the coil antenna.

(See COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

Go to the next step.

10

VERIFY AFTER REPAIR

•  Switch the ignition to off.

•  Disconnect the negative battery cable.

•  Reconnect the disconnected connectors.

•  Connect the negative battery cable.

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Verify DTCs using the M-MDS.
(See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Are DTCs output again?

―  Keyless control module: B10D9:87

―  PCM:P1260:00

Yes

Replace the keyless control module and program the immobilizer system-related parts.

(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

Go to the next step.

No

Go to the next step.

11

VERIFY THAT NO OTHER DTCs ARE PRESENT

•  Verify if other DTCs are displayed.

•  Are any other DTCs output?

Yes

Perform the corresponding DTC inspection.

No

DTC troubleshooting completed.

DTC	Security light flashing pattern		11	No detected communication with coil antenna
	M-MDS display	Keyless control module	B10D9:87
	M-MDS display	PCM	P1260:00
POSSIBLE CAUSE				• The coil antenna connector is pulled out • Coil antenna malfunction • Keyless control module malfunction • Related wiring harnesses malfunction

Step	Inspection		Action
1	VERIFY DTCs • Clear DTCs using the M-MDS. (See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].) • Verify DTCs using the M-MDS. (See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].) • Is the DTC displayed again? ― Keyless control module: B10E6:11	Yes	Inspect B10E6:11. (See SECURITY LIGHT: NOT ILLUMINATED, DTC B10E6:11/- [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)
1		No	Go to the next step.
2	VERIFY COIL ANTENNA CORRECTLY INSTALLED • Verify the installation condition of the coil antenna. • Is the coil antenna correctly installed?	Yes	Go to the next step.
2		No	Install the coil antenna correctly, then go to Step 10. (See COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
3	INSPECT COIL ANTENNA POWER SUPPLY • Switch the ignition to off. • Disconnect the coil antenna connector. • Connect the negative battery cable. • Switch the ignition to ON. • Measure the voltage at coil antenna connector terminal B. ― Is the voltage 8 V or more?	Yes	Go to step 5.
3		No	Go to the next step.
4	INSPECTION KEYLESS CONTROL MODULE • Measure the voltage at keyless control module connector terminal 4Q. ― Is the voltage 8 V or more?	Yes	Repair or replace the wiring harness, then go to Step 10.
4		No	Replace the keyless control module. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) Go to Step 10.
5	INSPECT WIRING HARNESS BETWEEN COIL ANTENNA AND GROUND • Switch the ignition to off. • Disconnect the negative battery cable. • Measure the continuity of the wiring harness between coil antenna connector terminal F and ground. • Is there continuity?	Yes	Go to the next step.
5		No	Repair or replace the wiring harness, then go to Step 10.
6	INSPECT COMMUNICATION CIRCUIT (INPUT) FOR CONTINUITY • Disconnect the keyless control module connector. • Measure the continuity of the wiring harness between coil antenna connector terminal C and keyless control module connector terminal 2D. • Is there continuity?	Yes	Go to the next step.
6		No	Repair or replace the wiring harness between the coil antenna and the keyless control module, then go to Step 10.
7	INSPECT COMMUNICATION CIRCUIT (OUTPUT) FOR CONTINUITY • Measure the continuity of the wiring harness between coil antenna connector terminal D and keyless control module connector terminal 2B. • Is there continuity?	Yes	Go to the next step.
7		No	Repair or replace the wiring harness between the coil antenna and the keyless control module, then go to Step 10.
8	INSPECT COIL ANTENNA INPUT SIGNAL CIRCUIT • Connect the coil antenna connector. • Connect the negative battery cable. • Switch the ignition to ON. • Measure the voltage at coil antenna connector terminal C. ― Is the voltage 8 V or more?	Yes	Go to the next step.
8		No	Replace the coil antenna. (See COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) Go to Step 10.
9	INSPECT COMMUNICATION CIRCUIT (OUTPUT) FOR CONTINUITY • Measure the continuity of the wiring harness between coil antenna connector terminal D and ground. • Is there continuity?	Yes	Go to the next step.
9		No	Replace the coil antenna. (See COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) Go to the next step.
10	VERIFY AFTER REPAIR • Switch the ignition to off. • Disconnect the negative battery cable. • Reconnect the disconnected connectors. • Connect the negative battery cable. • Clear DTCs using the M-MDS. (See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].) • Verify DTCs using the M-MDS. (See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].) • Are DTCs output again? ― Keyless control module: B10D9:87 ― PCM:P1260:00	Yes	Replace the keyless control module and program the immobilizer system-related parts. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].) Go to the next step.
10		No	Go to the next step.
11	VERIFY THAT NO OTHER DTCs ARE PRESENT • Verify if other DTCs are displayed. • Are any other DTCs output?	Yes	Perform the corresponding DTC inspection.
11		No	DTC troubleshooting completed.
