LIFTGATE AUTO CLOSURE CONTROL MODULE REMOVAL/INSTALLATION


id091400434300

1.  Disconnect the negative battery cable.

2.  Fold the rear seat back.

3.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

4.  Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

5.  Remove the trunk side upper trim. (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

6.  Remove in the order indicated in the table.

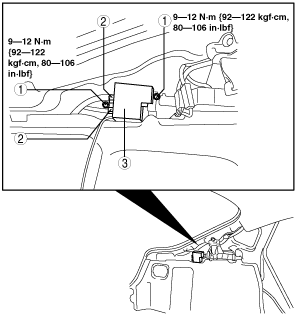

am6zzw00001592

1
Bolt
2
Connector
3
Liftgate auto closure control
