B-PILLAR LOWER TRIM REMOVAL/INSTALLATION

id091700802000

1.  Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION)

2.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION)

3.  Partially peel back the seaming welt.

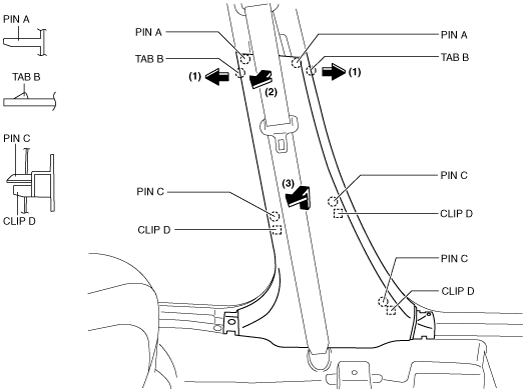

4.  Pull the B-pillar lower trim in the direction of the arrow (1), (2) shown in the figure, detach pin A, tab B, pin C, clip D, then remove the B-pillar lower trim.

am6zzw00001716

5.  Install in the reverse order of removal.
