D-PILLAR TRIM REMOVAL/INSTALLATION

id091700802300

1.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION)

2.  Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION)

3.  Remove the trunk side upper trim. (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION)

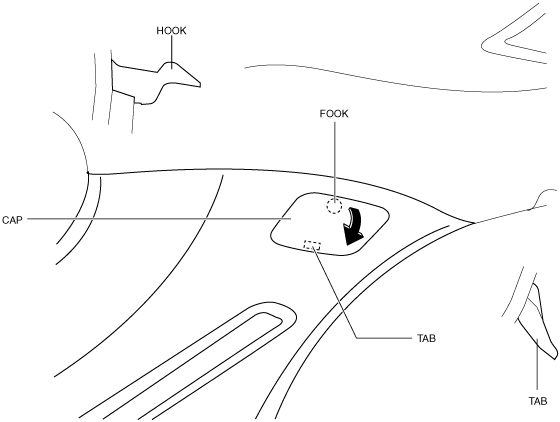

4.  Remove the cap using a fastener remove in the direction of the arrow shown in the figure.

am6zzw00003409

5.  Remove the bolts and fastener.

am6zzw00004549

6.  Pull the D-pillar trim in the direction of the arrow then detaching clips and guide pins.

7.   Install in the reverse order of removal.
