TRUNK SIDE TRIM REMOVAL/INSTALLATION

id091700803100

4SD

1.  Remove the trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

2.  Remove the fasteners, then remove the trunk side trim.

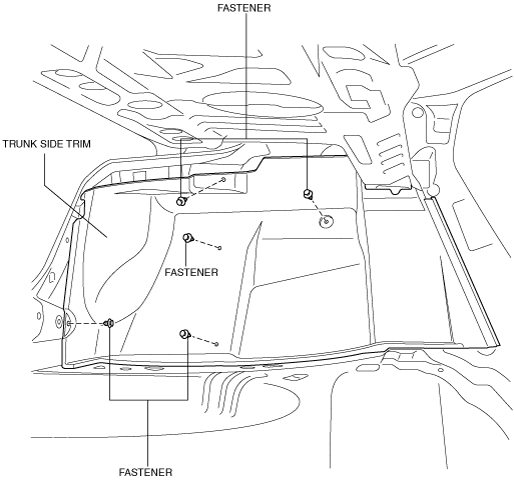

am6zzw00001742

3.  Install in the reverse order of removal.

5HB

1.  Remove the following parts:

(1)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

2.  Remove the fasteners then remove the trunk side trim.

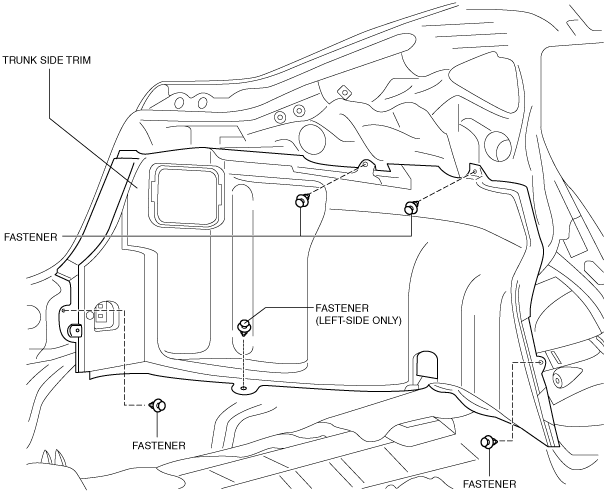

am6zzw00001743

3.  Install in the reverse order of removal.

Wagon

1.  Remove the following parts:

(1)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

2.  Remove the bolt then remove the cargo net hook.

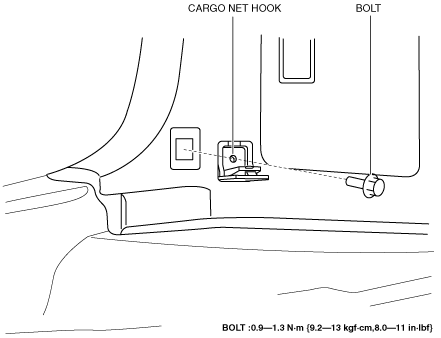

am6zzw00003458

3.  Remove the fasteners.

Left-side

am6zzw00003420

Right-side

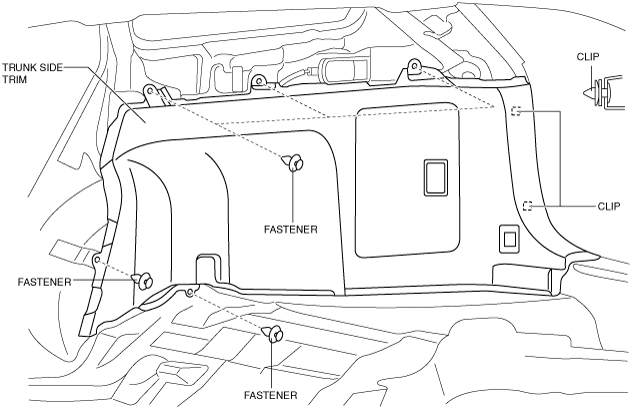

am6zzw00003459

4.  Pull the trunk side trim while detaching clips.

5.  Disconnect the Accessory Sockets connector. (right-side only)

6.  Install in the reverse order of removal.
