AFS (ADAPTIVE FRONT LIGHTING SYSTEM) OFF SWITCH REMOVAL/INSTALLATION

id091800813000

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (driver-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (driver-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Decoration panel (driver-side) (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(6)  Lower panel (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

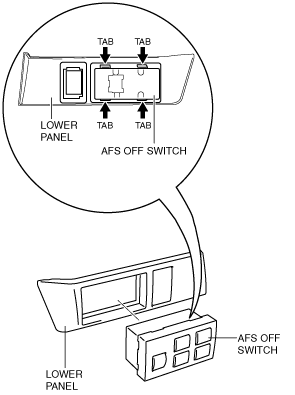

3.  Remove the tabs.

am6zzw00002178

4.  Remove the AFS OFF switch.

5.  Install in the reverse order of removal.

6.  Inspect the AFS operation. (See AFS (ADAPTIVE FRONT LIGHTING SYSTEM) OPERATIONAL INSPECTION.)
